Air Quality Monitor
| Brand | Safewill |
| Model | ES80A-A6 |
| Weight | 20-30Kg |
| Certificates | EPA, ISO14001, ISO9001, ISO45001 |
| Particulate Matter | PM2.5, PM10, TSP |
| Detecting Gas | O3, NO2, SO2, CO, VOC |
| Meteorological Parameters | Temperature, Humidity, Atmospheric pressure |
Safewill has been focusing on the environmental monitoring industry for 10 years, with direct sales and after-sales guarantee from the manufacturer. Customers can rest assured when making purchases.
Air pollution monitoring system are an important foundation for environmental protection and a primary means of monitoring and evaluating changes in environmental quality. With the development of China's economy, the improvement of people's living standards, and the increase in urban population, "improving air quality" has become an increasingly concerned issue. In this process, in order to ensure the accuracy and reliability of monitoring data, we need to regularly or irregularly sample environmental air quality monitoring.
The Safewill Micro Environmental air pollution monitoring system is an unmanned environmental monitoring system that integrates data collection, storage, transmission, and management. It can monitor the environment 24/7, continuously, and automatically. Based on providing 7 parameter data such as PM10, PM2.5, SO2, NO2, CO, O3, and VOC, it can expand the monitoring of meteorological parameters. On the basis of mastering and analyzing pollution source emissions and meteorological factors, it adopts a flexible point setting method tailored to local conditions for deployment. Real time statistics of monitoring equipment data from various factory areas and monitoring points, and analysis and speculation of the overall emission situation in the area based on the environmental conditions and pollution situation of each monitoring point, to achieve overall monitoring of hotspot emission areas, calculation of pollutant diffusion trends, and analysis of emission sources; Simultaneously integrating technologies such as the Internet of Things, intelligent data collection systems, geographic information systems, and dynamic chart systems
Contact Us for a Quote Today
For more details about air pollution monitoring system, pricing, and shipping information, feel free to reach out. We look forward to providing you with the best service possible!
| Basic Information | ||||
| Product Name | OEM Air Quality Monitoring System | |||
| Detection Method | Diffusion / Suction | |||
| Data Transmission | RS485 Modbus/4G LTE Optional | |||
| Preheat Time | 90 Seconds | |||
| Temperature/ Humidity | -20℃~50 ℃/10%RH ~95%RH (No Condensation) | |||
| Power Supply/Consumption | AC220V/50Hz/Optional Solar Power Supply/80W（MAX） | |||
| Size | 620*440*160MM | |||
| The Main Material | Cold Rolled Steel Plate | |||
| Installation Method | Outdoor Column Installation | |||
| Protection Class | IP53 | |||
| The Standard Gas Configuration | ||||
| Gas Type | Measuring Range | Resolution | Indication Error | T90 |
| O3 | 500ppb | 1ppb | ≤±10%FS | 120S |
| NO2 | 500ppb | 1ppb | ≤±10%FS | 120S |
| SO2 | 500ppb | 1ppb | ≤±10%FS | 120S |
| CO | 50ppm | 0.1ppm | ≤±10%FS | 120S |
| Optional Gases | ||||
| Gas Type | Measuring Range | Resolution | Indication Error | T90 |
| TVOC | 10ppm | 0.01ppm | ≤±10%FS | 120S |
| H2S | 20ppm | 0.1ppm | ≤±10%FS | 120S |
| NH3 | 20ppm | 0.1ppm | ≤±10%FS | 120S |
| Particulate Technical Parameters | ||||
| Project | Technical Indicators | |||
| Measuring Range | PM2.5/10/TSP：(0-2000) μg/m3 | |||
| Sampling Cutter | Cyclone Physical Cutter | |||
| Sampling Time | Adjustable, Default Five Minutes | |||
| Resolution | 1ug/m3 | |||
| Sampling Mode | Suction Type | |||
| Air Intake Heating | Heating And Dehumidifying According To Air Humidity | |||
| Malfunction Alarm | Real-Time Display Of Fault Alarms | |||
| Zero Method | Automatic zero calibration | |||
| Meteorological And Other Parameters(Optional) | ||||
| Parameters | Range | Resolution | Accuracy | |
| Temperature | -30℃--50℃ | 0.1℃ | ±1℃ | |
| Humidity | 0-95%Rh | 1%Rh | ±5%Rh | |
| Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s | |
| Wind Direction | 0-360° | 1° | / | |
| Atmospheric Pressure | 600—1100hPa | 1 hPa | / | |
| Noise | 30dB(A)~130dB(A) (A-weighted) | / | ±3dB | |
| Rainfall | 0~4mm/min | 0.1mm | ±0.4mm (≤10mm) ±4%(>10mm) | |
| Illumination | 0~200,000 Lux | / | ±7% (25℃) | |
| UV Radiation | 0~400mW/㎡ | 1mW/㎡ | ±5% | |

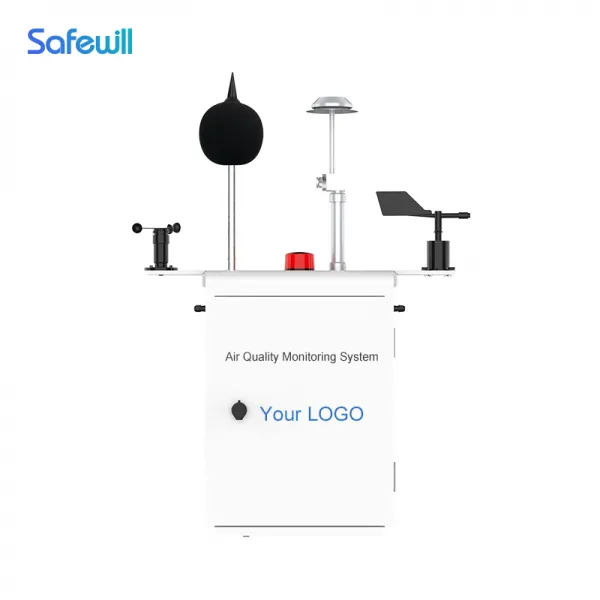

Color Customization To Create a Unique Appearance
