Air Quality Monitor
| Brand | Safewill |
| Model | ES80A-A6 |
| Weight | 20-30Kg |
| Certificates | EPA, ISO14001, ISO9001, ISO45001 |
| Parameter | PM2.5, PM10, TSP, Weather |
| Detecting Gas | O3, NO2, SO2, CO |
Safewill: Advanced Environmental Monitoring Solutions
Safewill is a professional enterprise specializing in the research, development, and manufacturing of environmental monitoring systems. Committed to delivering high-precision monitoring devices and tailored solutions, Safewill combines cutting-edge technology with industry expertise. Beyond hardware, Safewill helps clients design comprehensive environmental monitoring strategies based on specific scenarios and requirements.

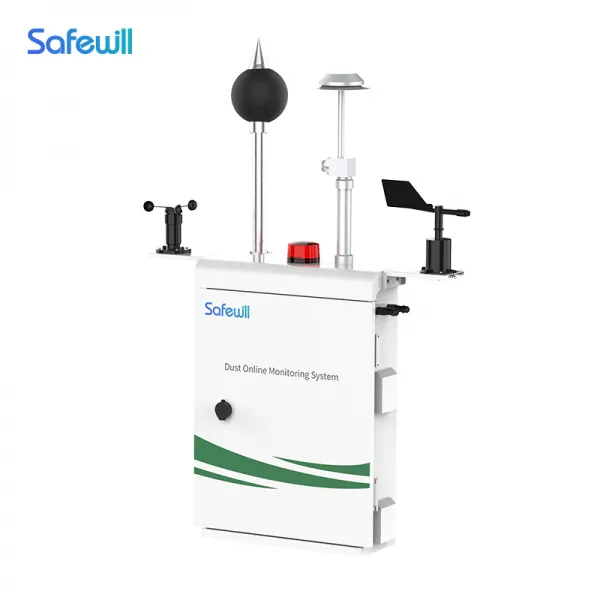

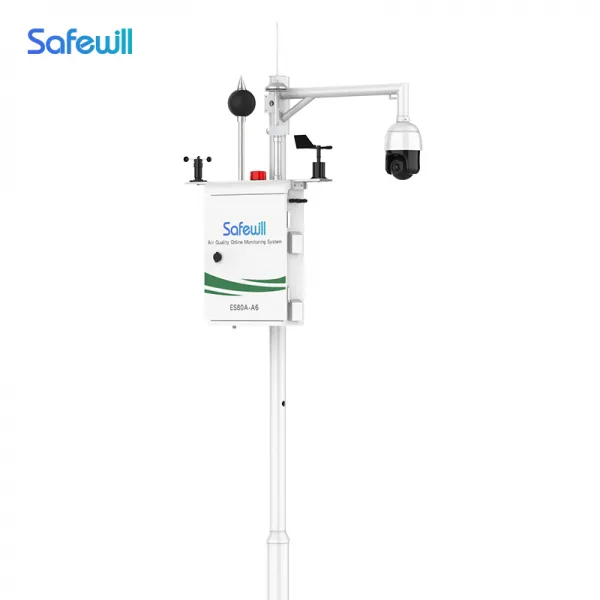

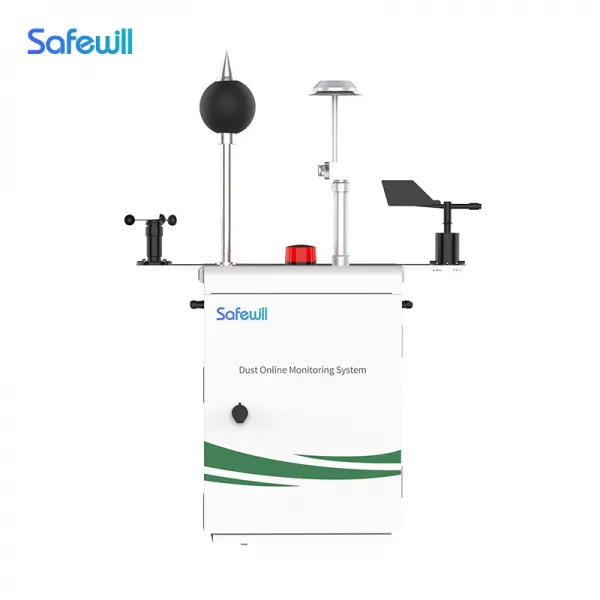

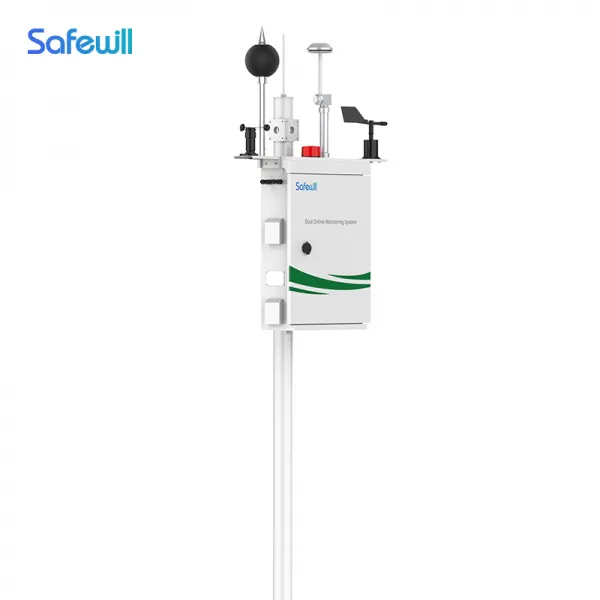

Popular Product: ES80A-A6 Air Quality Monitoring System
Product Overview
The ES80A-A6 is a multifunctional, high-precision air quality monitoring system that integrates gas monitoring and meteorological parameter collection. It is widely applicable to various environmental monitoring needs.
Monitoring Capabilities

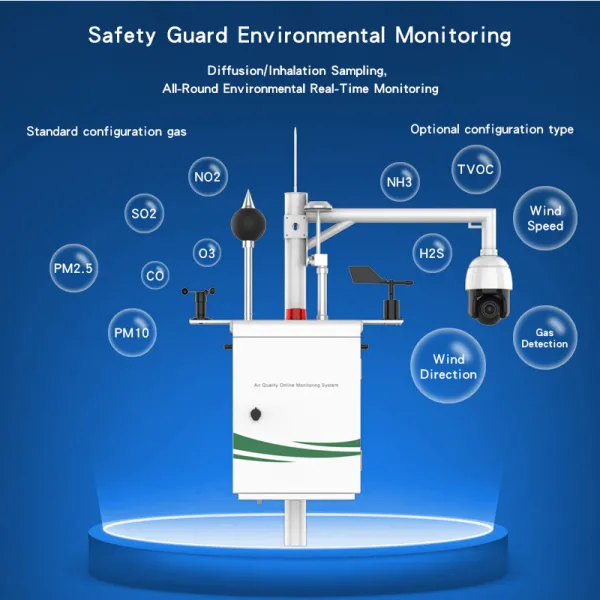

Gas Monitoring
O₃ (Ozone)
NO₂ (Nitrogen Dioxide)
SO₂ (Sulfur Dioxide)
CO₂ (Carbon Dioxide)
Meteorological Parameters
Wind Speed and Direction: Monitors airflow changes and direction.
Temperature and Humidity: Records real-time environmental conditions.
Atmospheric Pressure: Captures pressure variation data.
Key Features
Real-Time Monitoring and Transmission
Data is collected, analyzed, and stored via a cloud platform, enabling users to view and manage information anytime, anywhere.
High Integration Design
Combines gas and meteorological monitoring functions in a single device, simplifying hardware deployment.

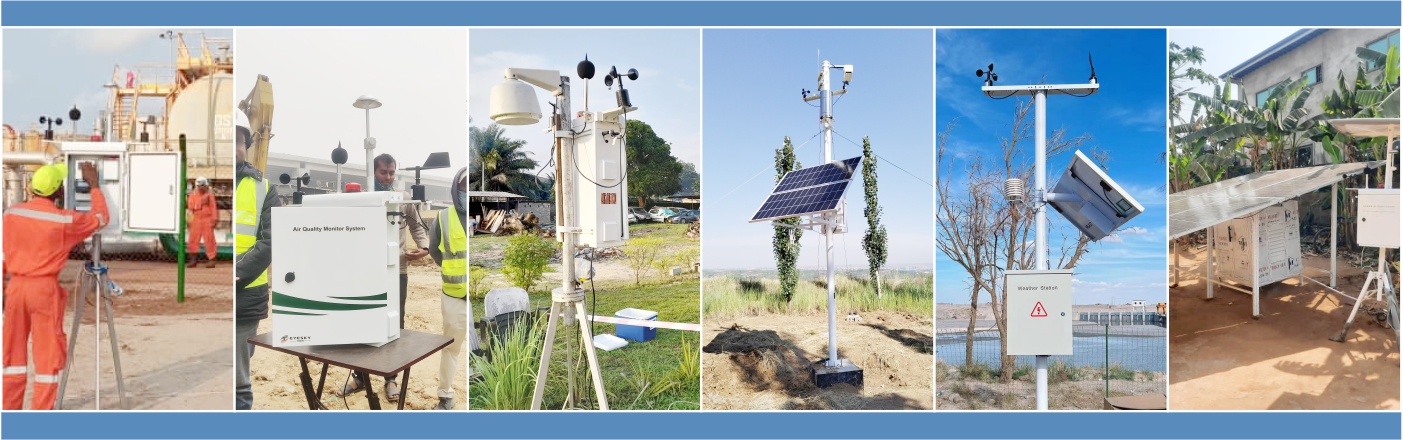

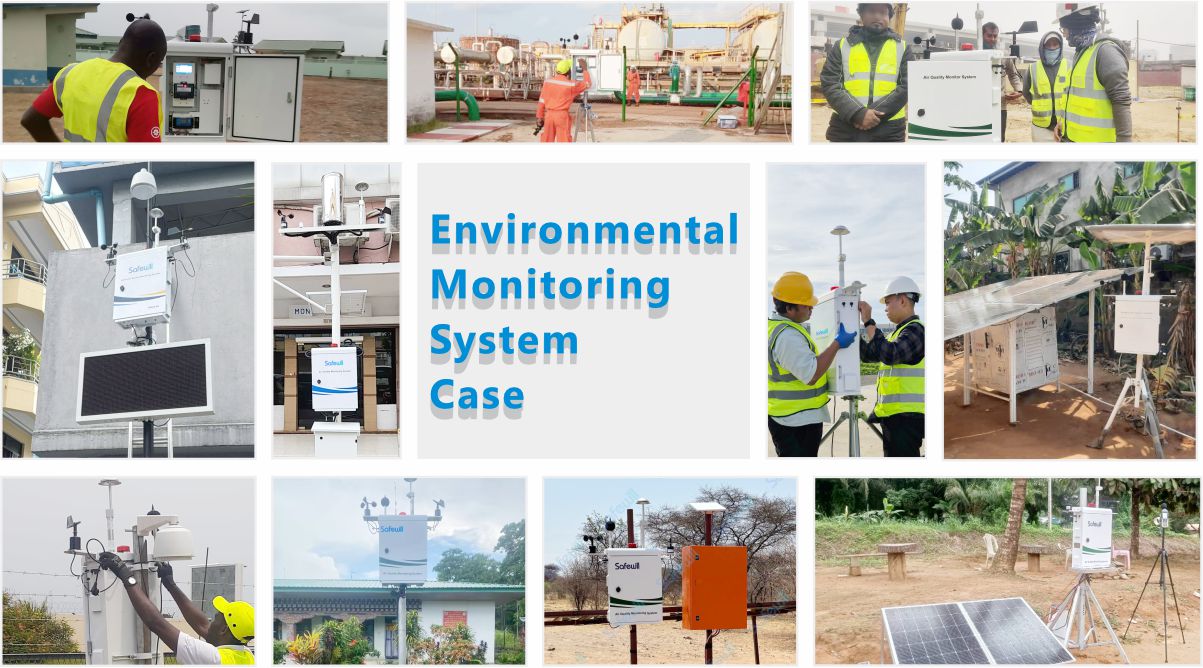

Applications
The ES80A-A6 is suitable for diverse settings, including:
Industrial parks
Urban environments
Agricultural monitoring
Scientific research
Service Advantages
Customized Solutions
Tailored to the user's environment and specific requirements, ensuring optimal monitoring results.
Professional Support
Comprehensive technical support, including equipment installation, calibration, and data analysis guidance.
Safewill’s products and solutions empower clients to achieve efficient environmental quality management. For detailed technical documentation or pricing information, please feel free to reach out!
| Basic Information | ||||
| Product Name | OEM Air Quality Monitoring System | |||
| Detection Method | Diffusion / Suction | |||
| Data Transmission | RS485 Modbus/4G LTE Optional | |||
| Preheat Time | 90 Seconds | |||
| Temperature/ Humidity | -20℃~50 ℃/10%RH ~95%RH (No Condensation) | |||

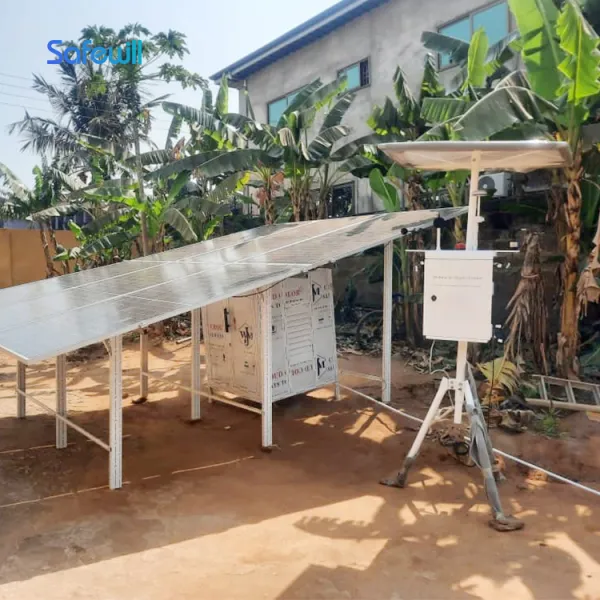

| Power Supply/Consumption | AC220V/50Hz/Optional Solar Power Supply/80W（MAX） | |||
| Size | 620*440*160MM | |||
| The Main Material | Cold Rolled Steel Plate | |||

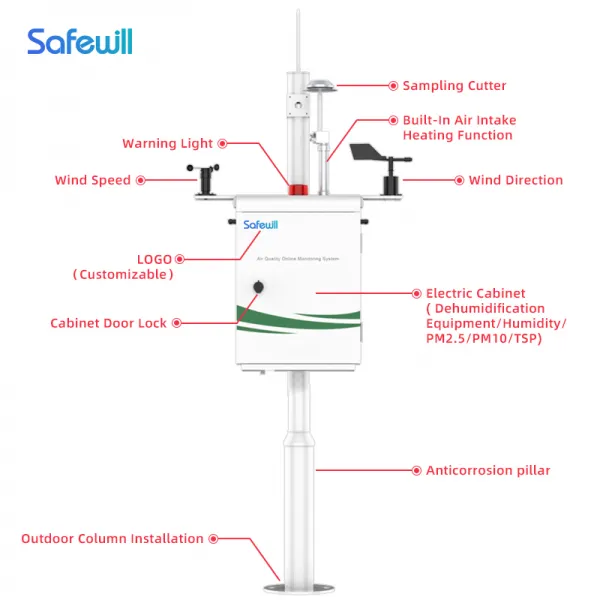

| Installation Method | Outdoor Column Installation | |||
| Protection Class | IP53 | |||
| The Standard Gas Configuration | ||||
| Gas Type | Measuring Range | Resolution | Indication Error | T90 |
| O3 | 500ppb | 1ppb | ≤±10%FS | 120S |
| NO2 | 500ppb | 1ppb | ≤±10%FS | 120S |
| SO2 | 500ppb | 1ppb | ≤±10%FS | 120S |
| CO | 50ppm | 0.1ppm | ≤±10%FS | 120S |
| Optional Gases | ||||
| Gas Type | Measuring Range | Resolution | Indication Error | T90 |
| TVOC | 10ppm | 0.01ppm | ≤±10%FS | 120S |
| H2S | 20ppm | 0.1ppm | ≤±10%FS | 120S |
| NH3 | 20ppm | 0.1ppm | ≤±10%FS | 120S |
| Particulate Technical Parameters | ||||
| Project | Technical Indicators | |||
| Measuring Range | PM2.5/10/TSP：(0-2000) μg/m3 | |||
| Sampling Cutter | Cyclone Physical Cutter | |||
| Sampling Time | Adjustable, Default Five Minutes | |||
| Resolution | 1ug/m3 | |||
| Sampling Mode | Suction Type | |||
| Air Intake Heating | Heating And Dehumidifying According To Air Humidity | |||
| Malfunction Alarm | Real-Time Display Of Fault Alarms | |||
| Zero Method | Automatic zero calibration | |||
| Meteorological And Other Parameters(Optional) | ||||
| Parameters | Range | Resolution | Accuracy | |
| Temperature | -30℃--50℃ | 0.1℃ | ±1℃ | |
| Humidity | 0-95%Rh | 1%Rh | ±5%Rh | |
| Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s | |
| Wind Direction | 0-360° | 1° | / | |
| Atmospheric Pressure | 600—1100hPa | 1 hPa | / | |
| Noise | 30dB(A)~130dB(A) (A-weighted) | / | ±3dB | |
| Rainfall | 0~4mm/min | 0.1mm | ±0.4mm (≤10mm) ±4%(>10mm) | |
| Illumination | 0~200,000 Lux | / | ±7% (25℃) | |
| UV Radiation | 0~400mW/㎡ | 1mW/㎡ | ±5% | |
Color Customization To Create a Unique Appearance
