Air Quality Monitor
| Brand | Safewill |
| Model | ES80A-A10 |
| Weight | 20-30Kg |
| Certificates | EPA, ISO14001, ISO9001, ISO45001 |
| Particulate Matter | PM2.5, PM10, TSP |
| Monitored Gas | SO2, NO2, O3, CO, CO2, TVOC, H2S, NH3 and more |
| Meteorological Parameters | Temperature, Humidity, Air Pressure, Wind Speed, Wind Direction, Noise, Rainfall, Illumination, UV Radiation and more |

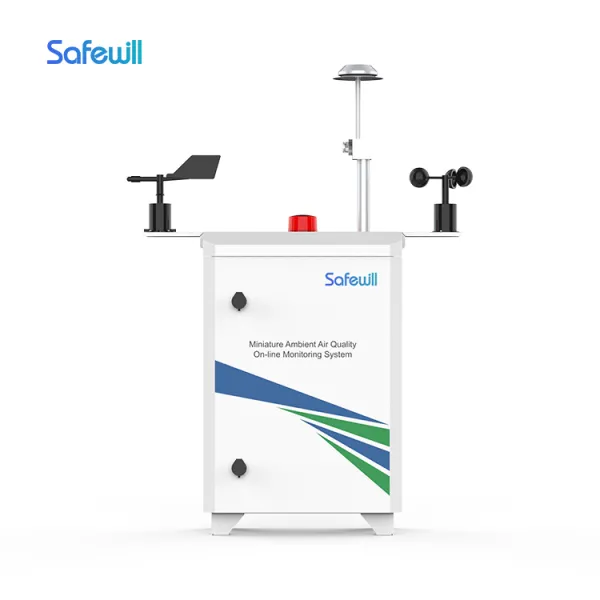

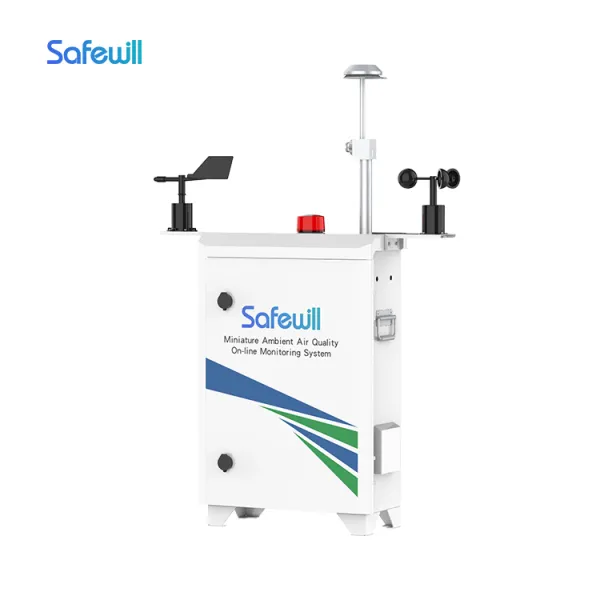

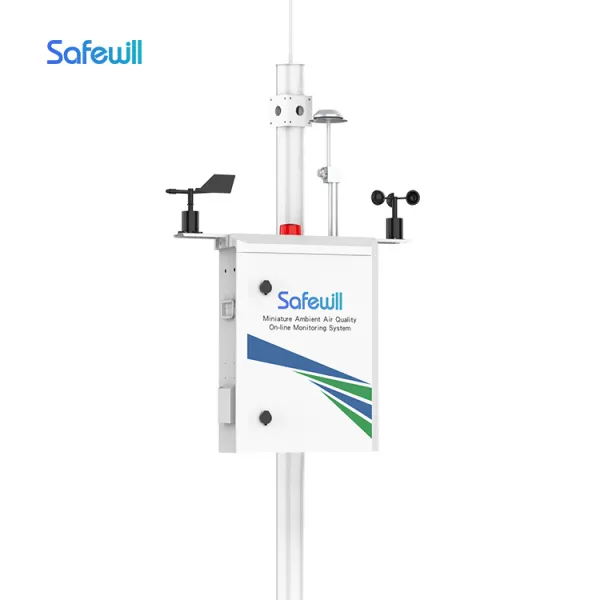

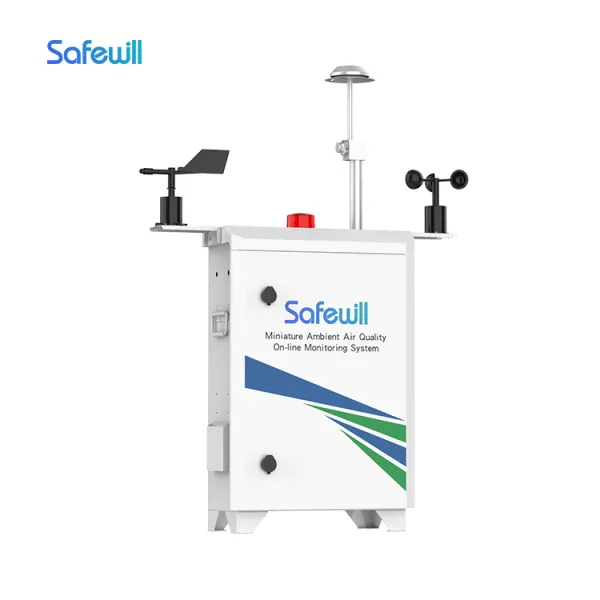

Safewill Environmental Modular Air Quality Monitoring System---Advanced Outdoor AQMS with Flexible Customization from Manufacturer
The Environmental Modular Air Quality Monitoring System from Safewill is an advanced solution in environment control and protection, designed to monitor the major air pollution factors such as PM2.5, PM10, TSP, CO, O3, NO2, SO2, TVOC, H2S, NH3, CO2, O2, together with more other parameters like wind speed, wind direction, noise, and so on. Using cutting-edge detection principles including laser scattering, electrochemical, PID, NDIR, etc. and supporting solar power module, this environmental emissions monitoring system delivers accurate and reliable data in ppb level and allow application in remote places without steady power. Besides, with 4G LTE connectivity and Safwill self-developed data cloud platform, it supports real-time data transmission, view and analysis to provide powerful data base for solution in environmental protection.
Services Safewill Provided:
OEM Support: Help clients's branding development in the local market;
Customization supports: Tailor-made solutions to meet meet clients; specific request;
Lead Time: Short production time within 7 days and in-time delivery;
Sufficient stock: Ready-to-ship products to minimize delays.
Warranty & After-Sales Service: Comprehensive warranty and dedicated technical support.

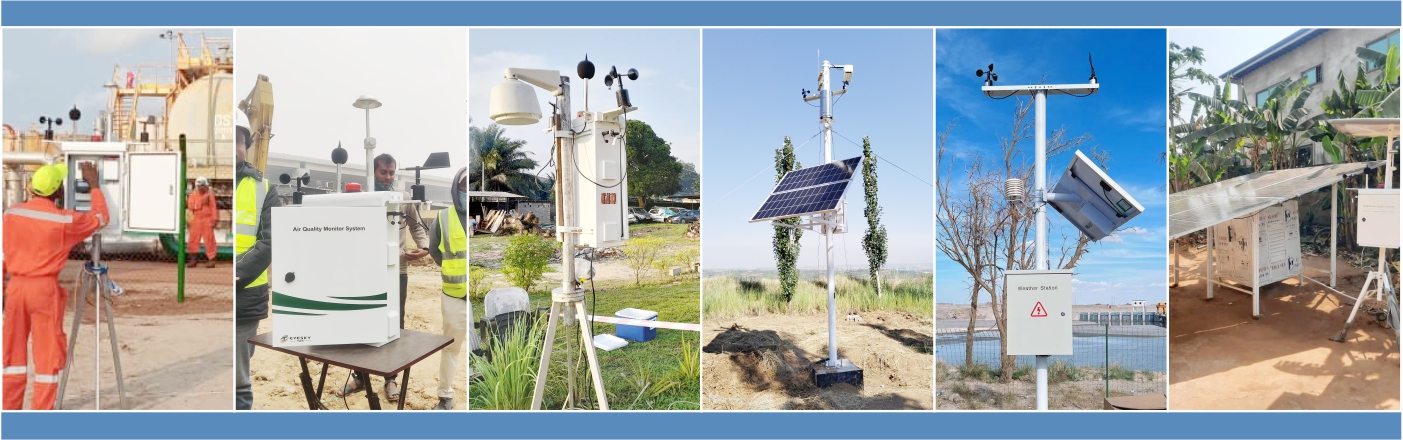

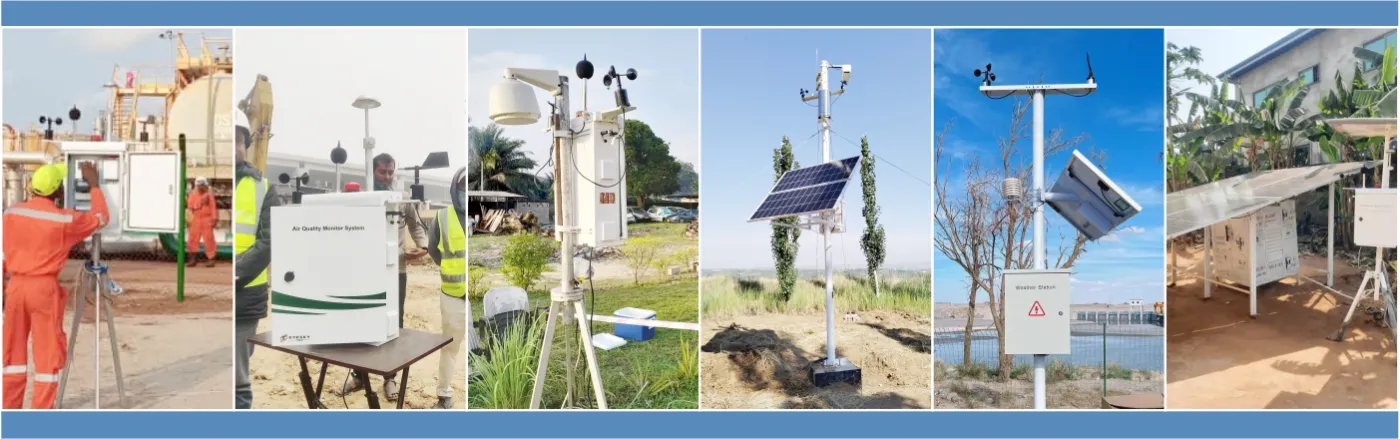

This air pollution monitoring device from Safewill is suitable for various industrial and construction zones, urban air quality control, and environmental research applications. With such broad applications, this environmental monitoring solution with high quality outdoor air monitoring device offers a reliable choicethose who seeking for tackling air pollution challenges. Contact us today to learn more or request a quote!
| Basic Information | ||||
| Product Name | Environmental Modular Air Quality Monitoring System | |||
| Detection Method | Diffusion / Suction | |||
| Monitored Paramters | Up to 26 parameters | |||
| Data Transmission | RS485 Modbus/4G LTE Optional | |||
| Preheat Time | 90 Seconds | |||
| Temperature/ Humidity | -20℃~50 ℃/10%RH ~95%RH (No Condensation) | |||
| Power Supply/Consumption | AC220V/50Hz/Optional Solar Power Supply/80W（MAX） | |||
| Size | 620*440*160MM | |||
| The Main Material | Cold Rolled Steel Plate | |||
| Installation Method | Outdoor Column Installation | |||
| Protection Class | IP53 | |||
| The Standard Gas Configuration | ||||
| Gas Type | Measuring Range | Resolution | Indication Error | T90 |
| PM2.5 | 0-1000μg/m3 | 1ug/m3 | ≤±10%FS | 120S |
| PM10 | 0-2000μg/m3 | 1ug/m3 | ≤±10%FS | 120S |
| TSP | 0-2000μg/m3 | 1ug/m3 | ≤±10%FS | 120S |
| O3 | 500ppb | 1ppb | ≤±10%FS | 120S |
| NO2 | 500ppb | 1ppb | ≤±10%FS | 120S |
| SO2 | 500ppb | 1ppb | ≤±10%FS | 120S |
| CO | 50ppm | 0.1ppm | ≤±10%FS | 120S |
| CO2 | 5000ppm | 1ppm | ≤±10%FS | 120S |
| TVOC | 10ppm | 0.01ppm | ≤±10%FS | 120S |
| H2S | 20ppm | 0.1ppm | ≤±10%FS | 120S |
| NH3 | 20ppm | 0.1ppm | ≤±10%FS | 120S |
| Meteorological And Other Parameters (Optional) | ||||
| Parameters | Range | Resolution | Accuracy | |
| Temperature | -30℃--50℃ | 0.1℃ | ±1℃ | |
| Humidity | 0-95%Rh | 1%Rh | ±5%Rh | |
| Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s | |
| Wind Direction | 0-360° | 1° | / | |
| Atmospheric Pressure | 600—1100hPa | 1 hPa | / | |
| Noise | 30dB(A)~130dB(A) (A-weighted) | / | ±3dB | |
| Rainfall | 0~4mm/min | 0.1mm | ±0.4mm (≤10mm) ±4%(>10mm) | |
| Illumination | 0~200,000 Lux | / | ±7% (25℃) | |
| UV Radiation | 0~400mW/㎡ | 1mW/㎡ | ±5% | |
Color Customization To Create a Unique Appearance
