Air Quality Monitor
| Brand | Safewill |
| Model | ES80A-A10 |
| Weight | 20-30Kg |
| Certificates | EPA, ISO14001, ISO9001, ISO45001 |
| Parameter | PM2.5, PM10, TSP, Weather |
| Detecting Gas | O3, NO2, SO2, CO, CO2, NH3, HCL |

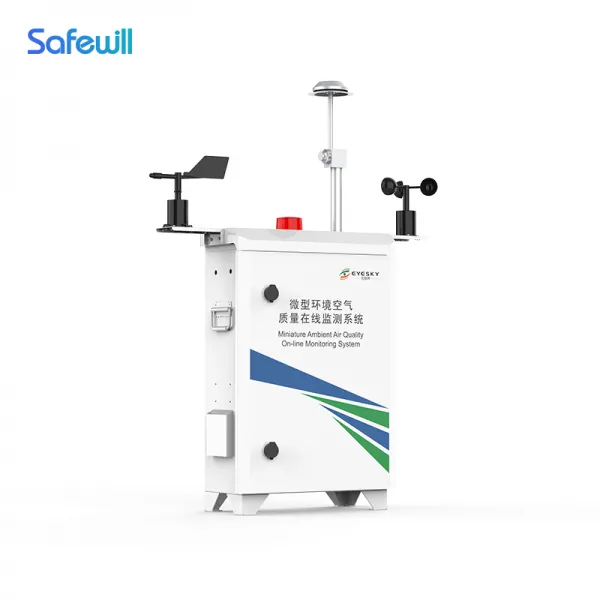

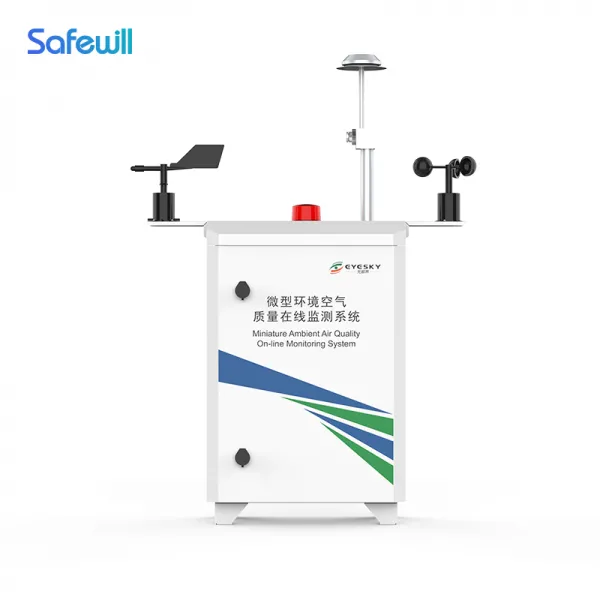

The ES80A-A10 Air Quality Online Monitoring System is an advanced environmental monitoring device designed for outdoor use. It provides real-time monitoring of various air quality parameters. Below is an overview of its main features and applications:
System Functions and Components

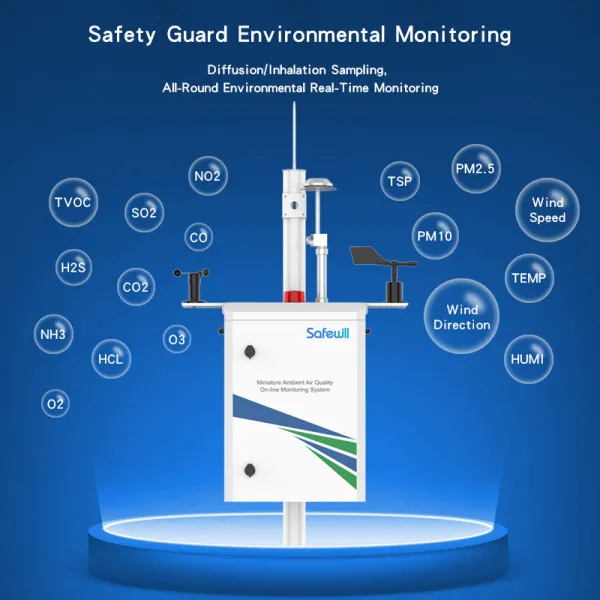

Monitoring Parameters:
Particulates: PM2.5, PM10, TSP
Gaseous Components: NO₂, SO₂, O₃, CO, HCl, H₂S, O₂, VOC, NH₃, CO₂
Meteorological Data: Temperature, humidity, wind speed, wind direction, atmospheric pressure
Key Modules:
Particulate Measurement Module: Equipped with a laser scattering sensor.
Gas Monitoring Module: Integrated with electrochemical gas sensors.
Meteorological Monitoring Module: Captures real-time environmental meteorological data.

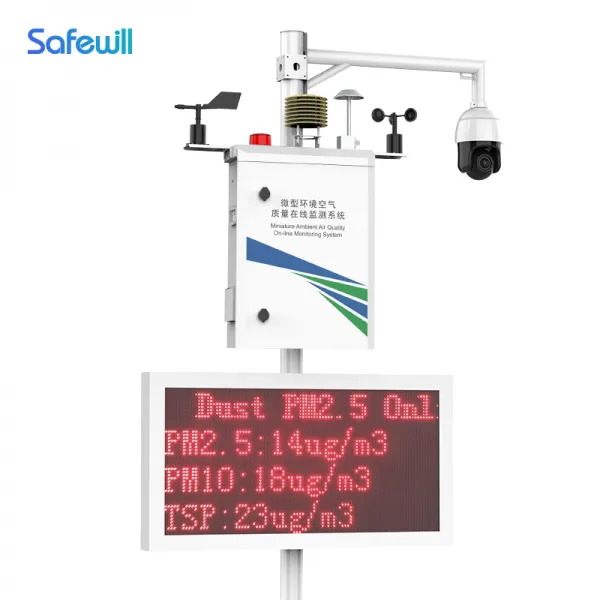

Video Monitoring Module: Supports environmental photography and real-time surveillance.
Data Collection and Wireless Transmission Unit: Enables data upload and remote access.
Monitoring and Analysis:
Real-time Data Collection and Analysis
Air Quality Index (AQI) Publication
Pollution Threshold Alerts
Video Surveillance and Environmental Visualization
Technical Advantages
Sampling Method: Utilizes pump-suction sampling for uniform and accurate sample collection.
Data Calibration: Supports on-site calibration to ensure high precision and traceability.
Platform Integration: Seamlessly integrates with grid-based monitoring platforms to support comprehensive environmental management.
Application Scenarios
Urban Air Quality Monitoring: Covers urban areas and sensitive regions.
Industrial Emission Monitoring: Suitable for unorganized gas emissions in factory zones.
Grid-based Air Quality Monitoring: Supports grid layout to enhance monitoring density and coverage.
Data Upload and Sharing:
Private Cloud Integration: Facilitates internal management for enterprises or organizations.
Government Data Center Connectivity: Enables real-time data sharing and regulatory oversight.
With its multifunctionality, high precision, and extensive applicability, the ES80A-A10 Monitoring System provides reliable technical support and data for environmental protection and air pollution control.
| Basic Information | ||||
| Product Name | Micro Air Quality Monitoring System | |||
| Detection Method | Diffusion / Suction | |||
| Data Transmission | RS485 Modbus/4G LTE Optional | |||
| Preheat Time | 90 Seconds | |||
| Temperature/ Humidity | -20℃~50 ℃/10%RH ~95%RH (No Condensation) | |||
| Power Supply/Consumption | AC220V/50Hz/Optional Solar Power Supply/80W（MAX） | |||
| Size | 620*440*160MM | |||
| The Main Material | Cold Rolled Steel Plate | |||

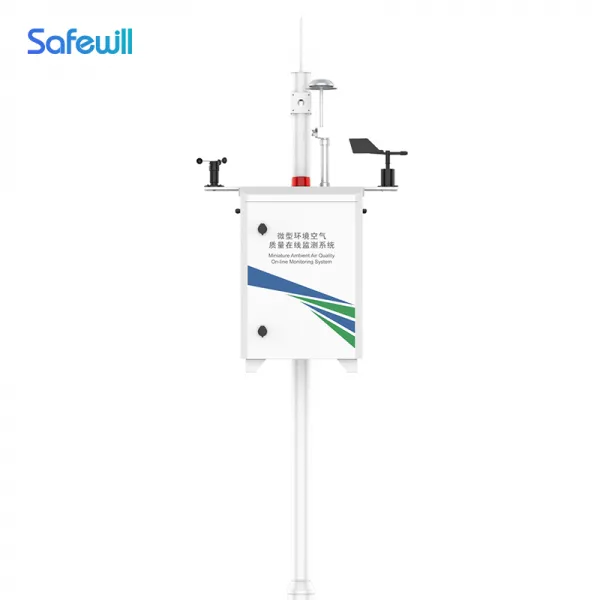

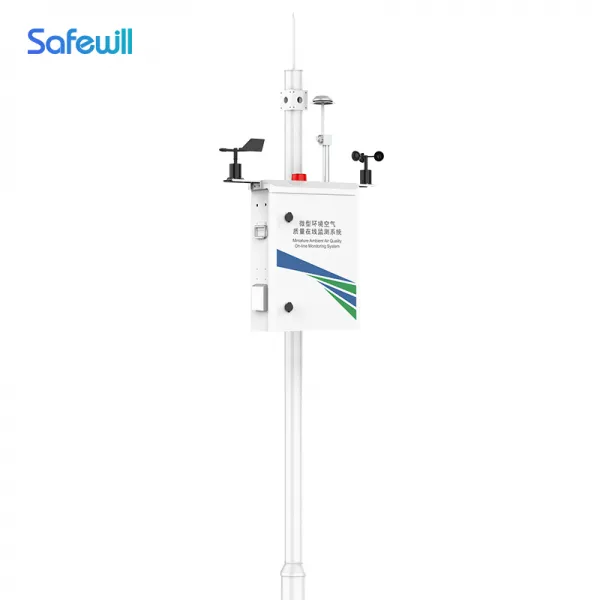

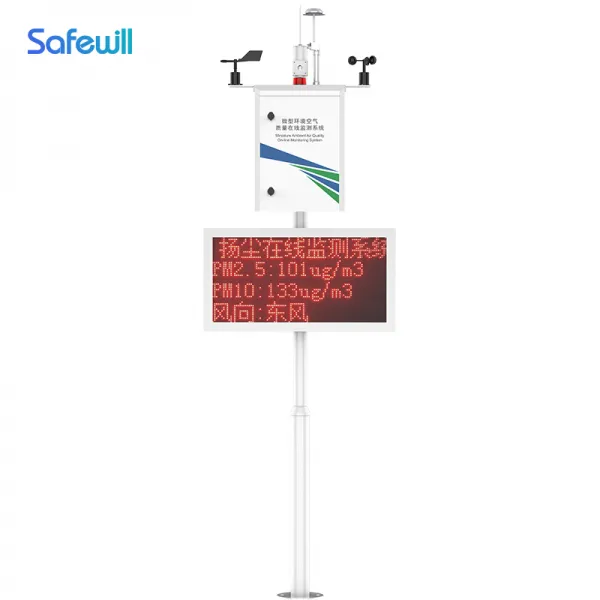

| Installation Method | Outdoor Column Installation | |||
| Protection Class | IP53 | |||
| The Standard Gas Configuration | ||||
| Gas Type | Measuring Range | Resolution | Indication Error | T90 |
| O3 | 500ppb | 1ppb | ≤±10%FS | <80S |
| NO2 | 500ppb | 1ppb | ≤±10%FS | <80S |
| SO2 | 500ppb | 1ppb | ≤±10%FS | <45S |
| CO | 50ppm | 0.1ppm | ≤±10%FS | <30S |
| H2S | 20ppm | 0.01ppm | ≤±10%FS | <60S |
| CO2 | 5000ppm | 0.01ppm | ≤±10%FS | <5S |
| NH3 | 100ppm | 0.01ppm | ≤±10%FS | <60s |
| HCL | 100ppm | 0.01ppm | ≤±10%FS | <60s |
| O2 | 30%VOL | / | ≤±10%FS | <15S |
| TVOC | 10ppm | 0.01PPm | ≤±10%FS | <5S |
| Particulate Technical Parameters | ||||
| Project | Technical Indicators | |||
| Measuring Range | PM2.5/10/TSP：(0-2000) μg/m3 | |||
| Sampling Cutter | Cyclone Physical Cutter | |||
| Sampling Time | Adjustable, Default Five Minutes | |||
| Resolution | 1ug/m3 | |||
| Sampling Mode | Suction Type | |||
| Air Intake Heating | Heating And Dehumidifying According To Air Humidity | |||
| Malfunction Alarm | Real-Time Display Of Fault Alarms | |||
| Zero Method | Automatic zero calibration | |||
| Meteorological And Other Parameters(Optional) | ||||
| Parameters | Range | Resolution | Accuracy | |
| Temperature | -30℃--50℃ | 0.1℃ | ±1℃ | |
| Humidity | 0-95%Rh | 1%Rh | ±5%Rh | |
| Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s | |
| Wind Direction | 0-360° | 1° | / | |
| Atmospheric Pressure | 600—1100hPa | 1 hPa | / | |
| Noise | 30dB(A)~130dB(A) (A-weighted) | / | ±3dB | |
| Rainfall | 0~4mm/min | 0.1mm | ±0.4mm (≤10mm) ±4%(>10mm) | |
| Illumination | 0~200,000 Lux | / | ±7% (25℃) | |
| UV Radiation | 0~400mW/㎡ | 1mW/㎡ | ±5% | |
Color Customization To Create a Unique Appearance
