Dust Monitor
| Brand | Safewill |
| Model | ES80A-Y8 |
| Weight | 20-30Kg |
| Certificates | EPA, ISO14001, ISO9001, ISO45001 |
| Parameter | PM2.5, PM10, TSP, Wind Speed, Wind Direction, Temperature And Humidity, Atmospheric Pressure |

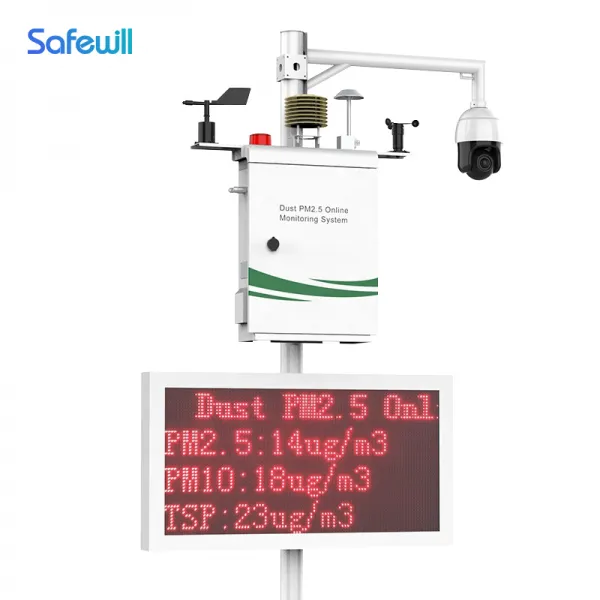

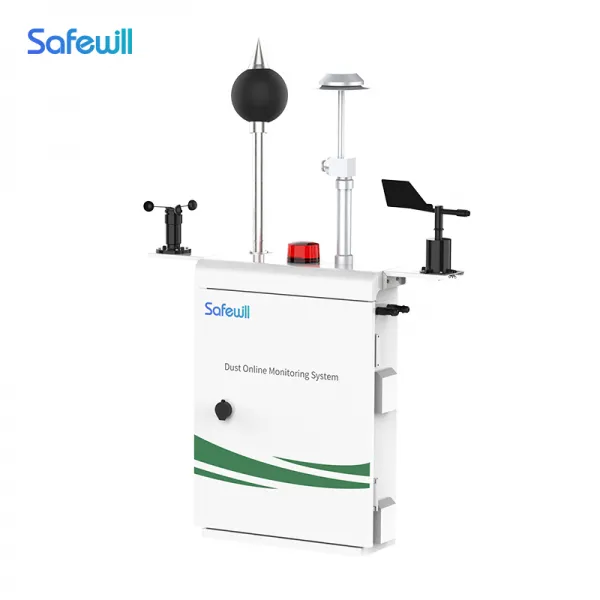

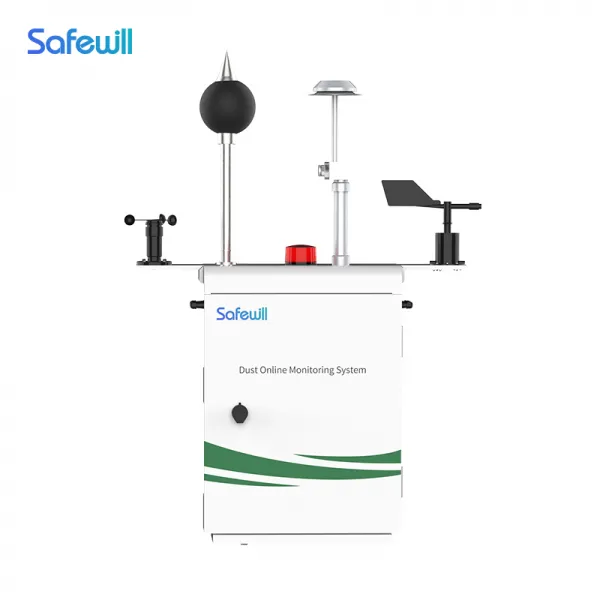

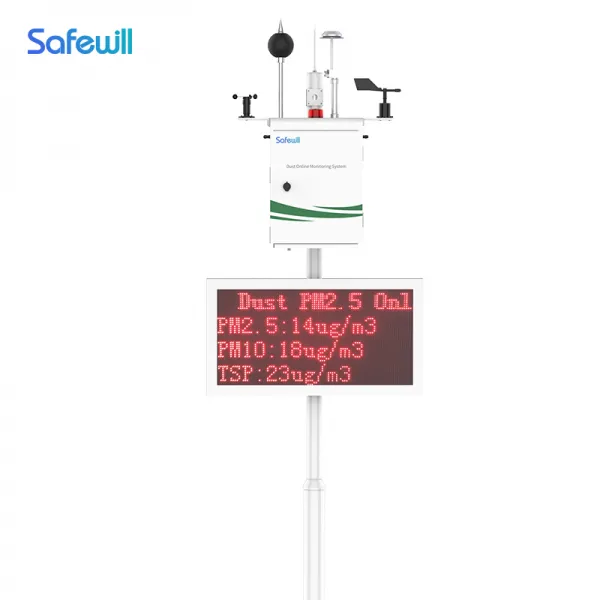

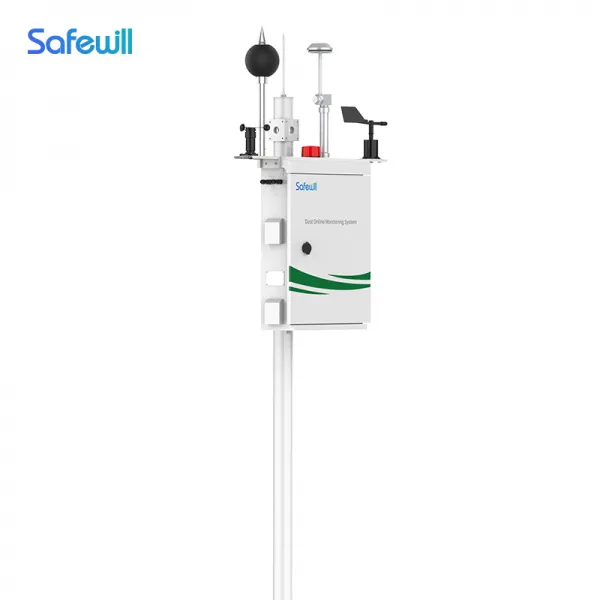

Online Dust Monitoring System
A professional instrument designed specifically for environmental inspectors who need to monitor and manage outdoor dust and particulate matter. Utilizing the principle of light scattering, the system reliably and accurately measures PM2.5, PM10, TSP (Total Suspended Particulates), and emission mass in real-time.
System Features
Designed for Outdoor Use: Rugged and durable, suitable for various challenging environments.
Real-Time Continuous Monitoring: Supports real-time data collection for PM1, PM2.5, PM10, and TSP.
24/7 Data Access: Enables uninterrupted data monitoring and recording 24 hours a day, 365 days a year.
Remote Connectivity: Supports wide-area network and 4G data transmission for real-time data sharing and management.
Modular Expansion Options: Optional sensors for wind speed, weather, and noise provide flexible functionality.

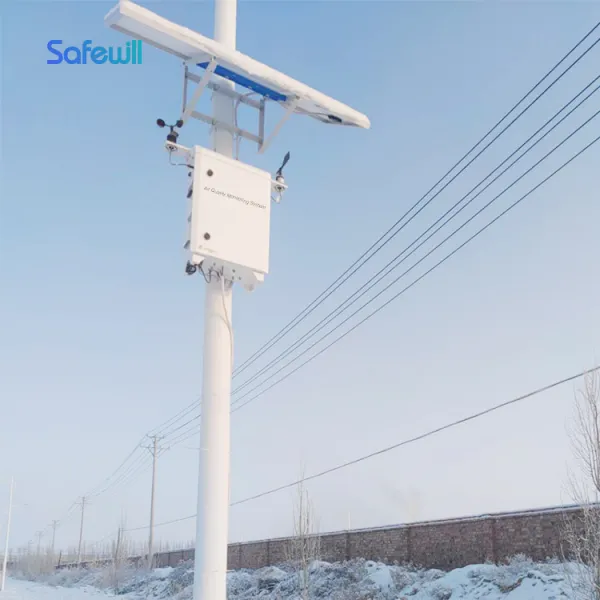

Versatile Power Supply: Supports battery or solar power, ideal for remote locations.
Applications
Transportation and Public Areas: Such as street intersections and highways.
Fire and Agricultural Monitoring: Forest fire alarms and agricultural stubble burning detection.
Industrial Pollution Sources: Heavy-polluting industries like petrochemicals, mining, steel mills, and refineries.
Waste Management and Ecology Protection: Waste treatment stations and environmentally sensitive areas like tourist attractions.
Residential and Community Areas: Residential neighborhoods, schools, hospitals, and other densely populated areas.
This online dust monitoring system provides powerful support for improving air quality management and environmental protection. Would you like more detailed information or specific product specifications?
| Basic Information | ||||
| Product Name | Dust Monitoring System | |||
| Detection Method | Pump Inhalation | |||
| Monitoring Parameters | PM2.5, PM10, TSP, Wind Speed, Wind Direction, Temperature And Humidity, Atmospheric Pressure | |||
| Data Transmission | 4G LTE | |||
| Preheat Time | 60 Seconds | |||
| Temperature/ Humidity | -20℃~50 ℃/10%RH ~95%RH (No Condensation) | |||
| Power Supply/Consumption | AC220V/50Hz/Optional Solar Power Supply/80W（MAX） | |||
| Size | 620*440*160MM | |||
| The Main Material | Cold Rolled Steel Plate | |||
| Installation Method | Outdoor Column Installation | |||
| Protection Class | IP53 | |||
| Technical Indicators | |||
| Monitoring Parameters | Range | Resolution | Accuracy |
| PM2.5 | 0-1000ug/m3 | 1ug/m3 | ＞100ug/m3:±25% |
| PM10 | 0-2000ug/m3 | 1ug/m3 | ＞100ug/m3:±25% |
| TSP | 0-2000ug/m3 | 1ug/m3 | ＞100ug/m3:±25% |
| Temperature | -30℃--50℃ | 0.1℃ | ±1℃ |
| Humidity | 0-95%Rh | 1%Rh | ±5%Rh |
| Atmospheric Pressure | 600-1100hPa | 1 hPa | / |

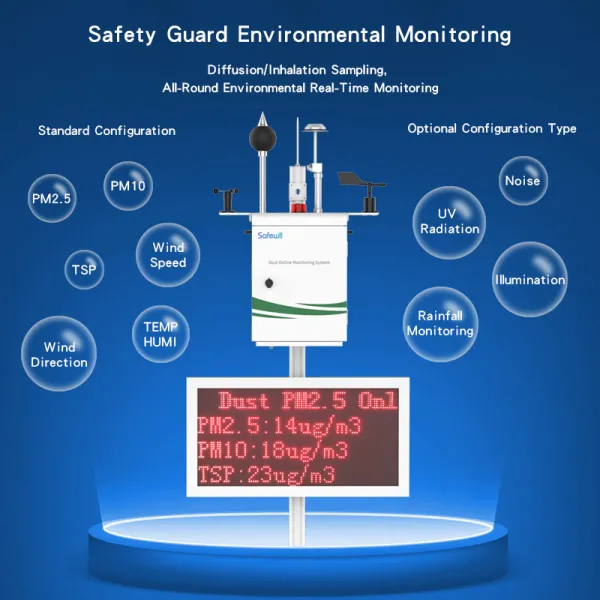

| Optional Parameter Table | |||
| Monitoring Parameters | Range | Resolution | Accuracy |
| Rainfall | 0~4mm/min | 0.1mm | ±0.4mm（≤10mm） ±4%（＞10mm） |
| Illumination | 0~200,000 LUX | / | ±7%（25℃ / ） |
| UV Radiation | 0~400mW/m² | 1w/m² | ±5% |
| Noise | 30dB(A)~130dB(A) (A-Weighted) | / | ±3dB |
| Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s |
| Wind Direction | 0-360° | 1° | / |
| Wind | Level 0-15 | Level 1 | / |
Color Customization To Create a Unique Appearance
