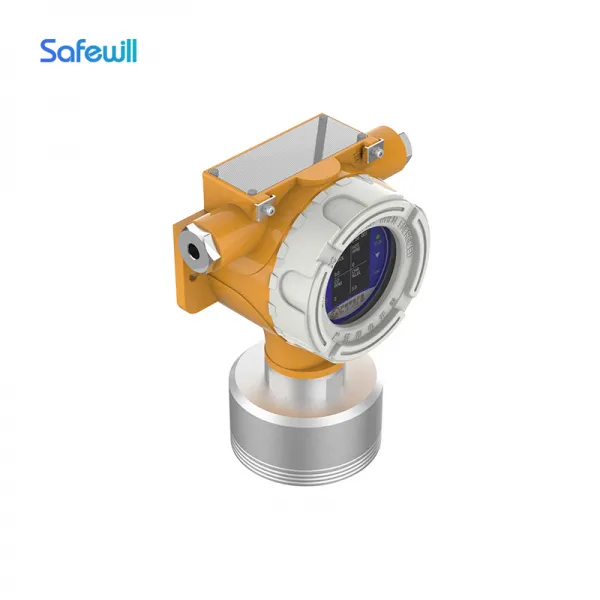

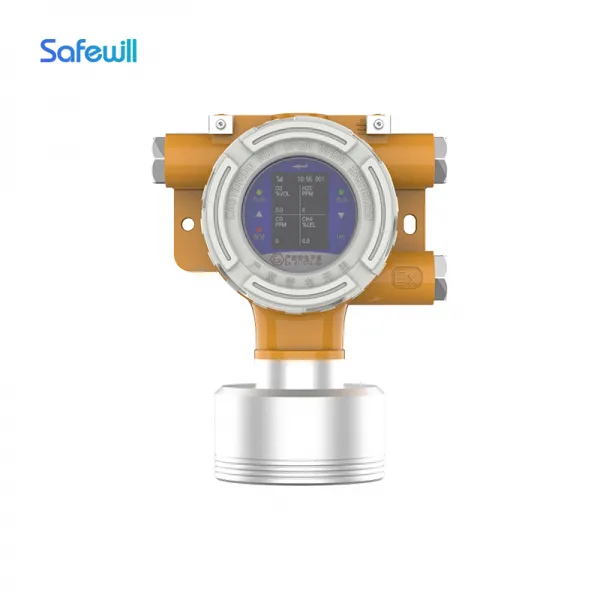

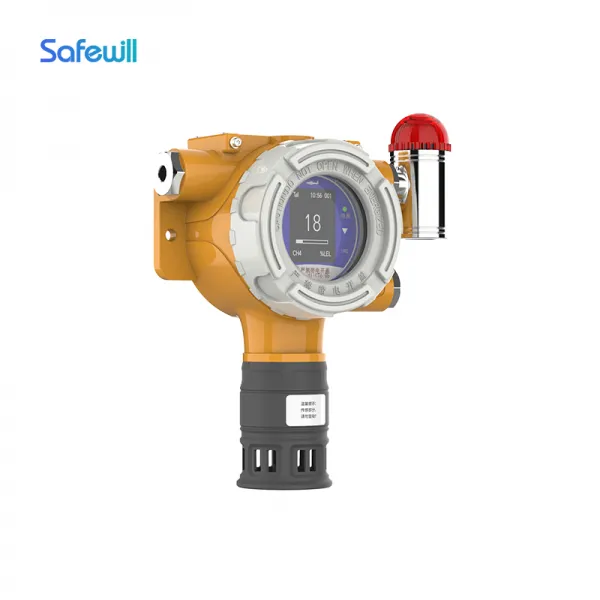

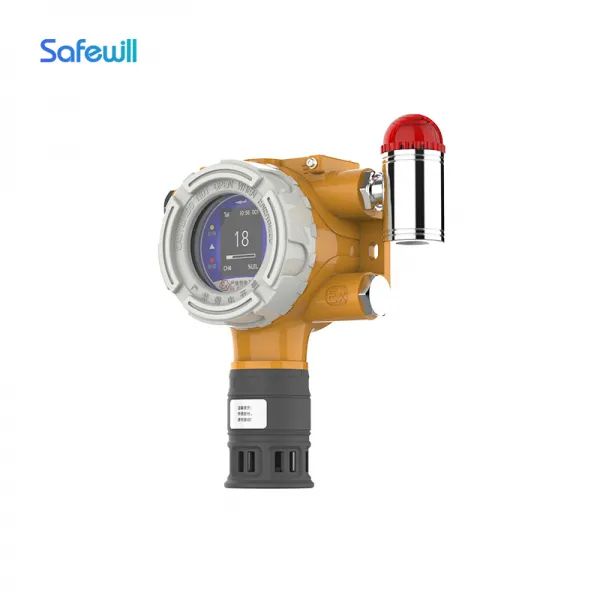

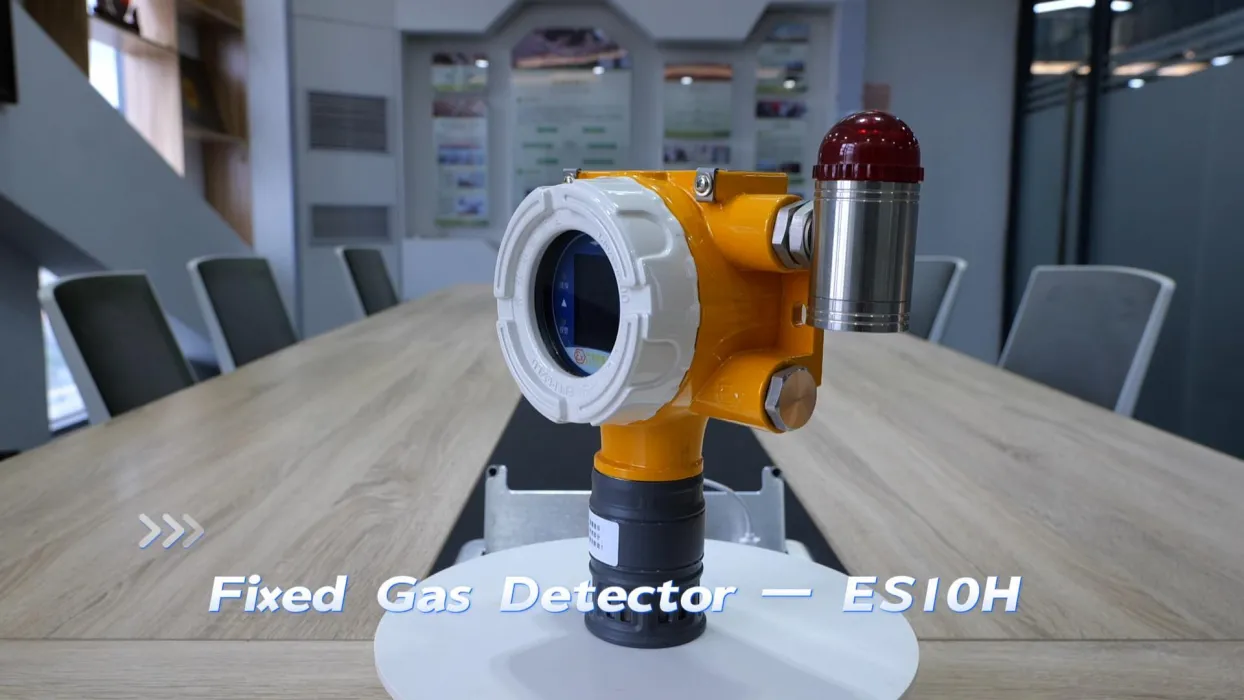

Fixed Gas Detector
| Brand | Safewill |
| Model | ES10H |
| Display | LCD/LED Screen |
| Detection Method | Diffusion |
| Weight | 2.1KG |
| Certificates | CE, ATEX, SIL, RoHS, ISO14001, ISO9001,ISO45001 |
| Detected Gas | Max 4 gases simultaneously (LEL, CO, H2S, NH3, O3, O2, SO2, CH4, VOC, NO, |
Safewill Fixed Multi Gas Detector, Reliable and Comprehensive Multi-Gas Detection for Enhanced Industrial Safety
The Safewill Fixed Multi Gas Detector is a model frequently applied in many industrial like oil and gas, underground pipelines, underground working, chemical processing, manufacturing, environmental safety applications and so on with its great performance in continuous detection and timely alarm for the possible danger. With the advanced sensor technology, the detector could detect 4 gas simultaneously and support RS485 and 4-20mA signal outputs, enabling seamless integration with PLC systems, central controllers, and audible-visual alarms.
Safewill provide professional and customer-centric services:
OEM Support: Flexible OEM policy to help partners develop branding
Short Lead Time: Rapid production and delivery within 3-7 working days to meet urgent demands;
Sufficient stock: Ready-to-ship products to minimize delays.
Test and Calibration: Strict test and calibration report issued before delivery from factory;
Warranty & After-Sales Service: Comprehensive warranty and dedicated technical support.
Safewill team is always committed to develop and deliver the high quality fixed gas detection equipment. Fixed hydrogen gas detector, fixed H2S gas detector, fixed combustible gas detector, fixed oxygen gas detector, fixed carbon monoxide gas detector, fixed refrigerant leak detector...you can ask flexible customization for multi gas as per your demand. Contact us today to learn more or request a quote!
| Basic Information | ||||
| Product Name | Fixed Multi Gas Detector | |||
| Display Screen | LCD Screen/LED Screen | |||
| Detection Method | Diffusion | |||
| Detection principle | Catalytic combustion type, electrochemical type, light ion type, thermal conductivity type, infrared NDIR type | |||
| Data Transmission | RS485, 4-20mA; Two passive relay (24VDC 2A) | |||
| Response Time | T90 < 30S (combustible gas) | |||
| Temperature | -20°C to +50°C(toxic gas)/-40℃ ~ 70℃(combustible gas) | |||
| Humidity/Pressure | 10%-95% RH (non-condensing)/86-106 KPa | |||
| Power Supply | 24VDC (normal working voltage range: 10 ~ 30VDC) | |||
| Power consumption | < 1.5W(toxic gas)；< 2.5W(combustible gas) | |||
| Alarm Method | Audible and visual alarms (optional) | |||
| Protection Class | IP66 | |||
| Accuracy | ±3% F.S. | |||
| Reduplication | ±2% | |||
| Material | Aluminum alloy | |||
| Weight | 2.1 kg | |||
| Dimensions | 209*160*86mm（L*W*H） | |||
| Installation | wall - mounted, horizontal pipe, vertical pipe | |||
| Technical Parameters | ||||
| Gas Options (Max 4 gases simultaneous) | Detecting Range | Resolution | ||
| Carbon Monoxide(CO) | 0-100/500/1000ppm | 1ppm | ||
| Hydrogen Sulfide(H2S) | 0-100/1000ppm | 1ppm | ||
| Ammonia(NH3) | 0-20/100/1000ppm | 0.1/1ppm | ||
| Ozone(O3) | 0-1/10/100ppm | 0.1/1ppm | ||
| Oxygen(O2) | 0-30%VOL/100%VOL | 1%VOL | ||
| Sulfur Dioxide(SO2) | 0-20/2000ppm | 0.1/1ppm | ||
| Methane(CH4) | 0-5%/100%VOL | 1%VOL | ||
| Volatile Organic(VOC) | 0-50/100/200ppm | 1ppm | ||
| Nitric Oxide(NO) | 0-250/2000ppm | 1ppm | ||
| Nitrogen Dioxide(NO2) | 0-20/2000ppm | 1ppm | ||
| Hydrogen Chloride(HCL) | 0-50/200ppm | 1ppm | ||
| Carbon Dioxide(CO2) | 0-1/2/5/10%VOL | 0.1/1%VOL | ||
| Nitrogen(N2) | 0-30%VOL | 0.1/1ppm | ||
| Combustible Gas(EX) | 0-100%LEL | 1%VOL | ||
| Argon Gas(Ar) | 0-30%VOL | 1%VOL | ||
| Hydrogen Cyanide(HCN) | 0-50ppm | 1ppm | ||
| Helium(He) | 0-2000ppm/0- 100%VOL | 1ppm/1%VOL | ||
| Hydrogen(H2) | 0-1000/40000ppm | 1ppm | ||
| Hydrogen Fluoride(HF) | 0-10/100ppm | 0.1/1ppm | ||
| Sulfur Hexafluoride(SF6) | 0-1000ppm/0- 100%VOL | 1ppm/1%VOL | ||
| For more other gas detecting, please contact us for customization as per your request. | ||||
Color Customization To Create a Unique Appearance
