Multi Gas Detector
| Brand | Safewill |
| Model | ES60A |
| Weight | 280g |
| Certificates | CE, ATEX, SIL, RoHS, ISO14001, ISO9001, ISO45001 |
| Particulate Matter | LEL, H2S, CO, O2, CO2, NH3, SO2, NO2, CH4, O3, VOC, N2, Ar, EX, HCL, HCN, F2 |
Portable Built-in Pump 6-in-1 Gas Detector: Versatile and High-Precision Multi Gas Detection Solution
Product Details:

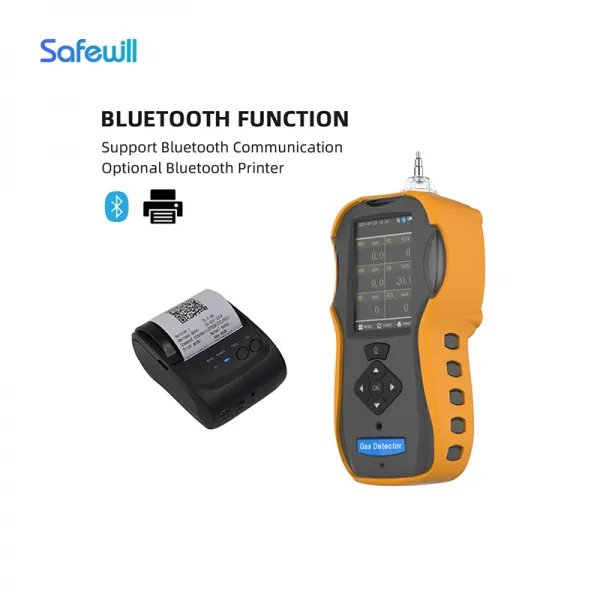

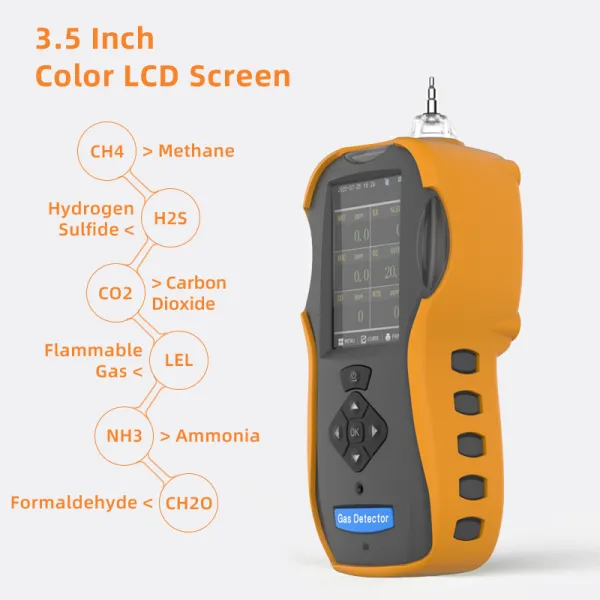

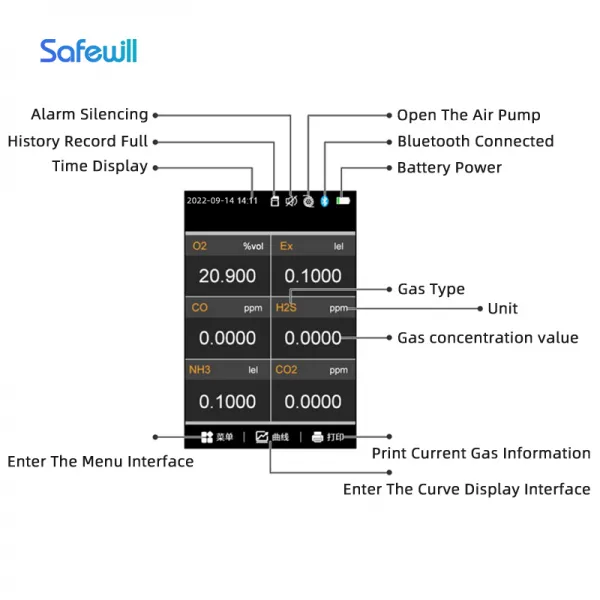

The handheld multigas detector is a cutting-edge device that integrates advanced sensor technology with a robust pump suction mechanism, delivering precise and reliable measurements of up to six gases simultaneously. Featuring easy-to-carry, long-standy operation hours with a rechargeable 7500mAh battery, bluetooth output, visual LCD screen and sound/vibration alarm, the multi gas monitor with its diversified gas options like LEL, CH4, CO2, CO, O2, NO2, SO2, O3, VOC, NH3, H2S...is a trusted tool for gas detection in various industrial environments including petrochemical, metallurgy, factories, underground pipe galleries, and more.
Safewill provide professional and customer-centric services:
OEM Support: Flexible OEM policy to help partners develop branding
Short Lead Time: Rapid production and delivery within 3 days to meet urgent demands;
Sufficient stock: Ready-to-ship products to minimize delays.

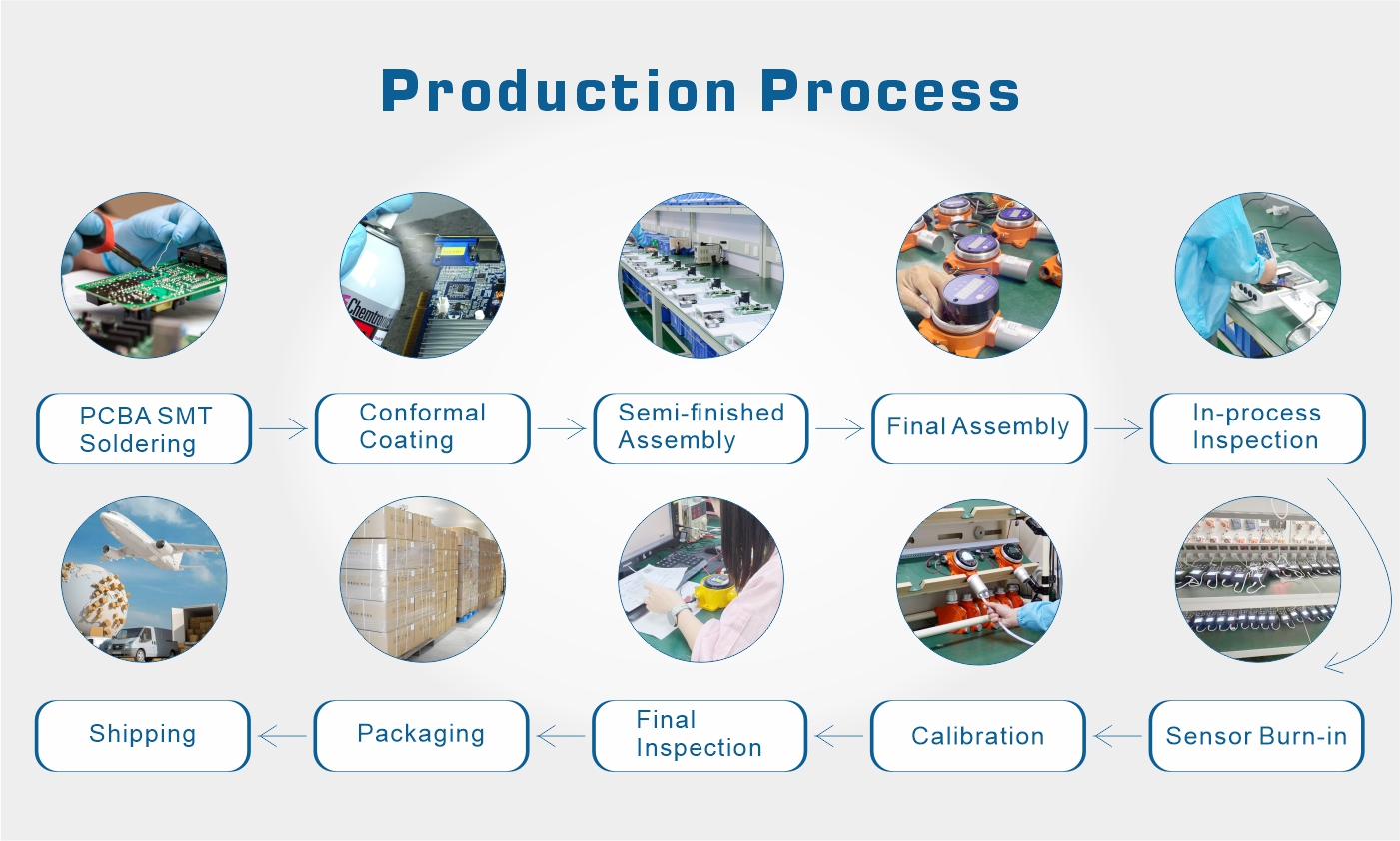

Test and Calibration: Strict test and calibration report issued before delivery from factory;
Warranty & After-Sales Service: Comprehensive warranty and dedicated technical support.
Are you looking for a portable detector for multi gases with different range? Contact us right away to get the best offer with detailed specification.
| Basic Information | ||||
| Product Name | Portable Built-in Pump 6-in-1 Gas Detector | |||
| Detection Method | Pump Suction (sampling distance over 10 meters) | |||
| DETECTION PRINCIPLE | Catalytic combustion, infrared detection, electrochemistry, photoionization, PID, thermal conductivity | |||
| Data Transmission | Bluetooth | |||
| Response Time | T90<30S | |||
| Temperature/ Humidity/Pressure | -20°C to +50°C/10%-95% RH (non-condensing)/86-106 KPa | |||
| Power Supply | Lithium battery, capacity 7500mAh | |||
| Charging Time | ≤12 hours | |||
| Operating Time | ≥10 hours (at room temperature, no alarm) | |||

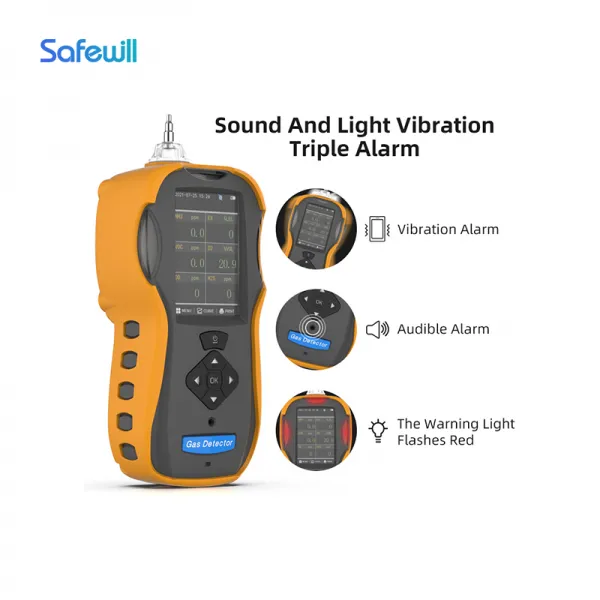

| Alarm Method | Visual, Vibrating, Audible; Low, High, TWA, STEL, OL(over limit), Low Battery | |||
| Protection Class | IP54 | |||
| Material | ABS | |||
| Weight | 280g | |||

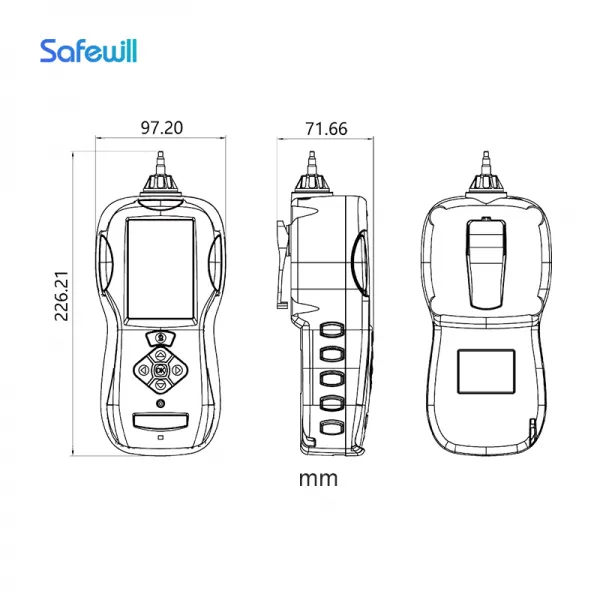

| Dimensions | 206.5x70x36mm | |||
| Technical Parameters | ||||
| Gas Options (Max 6 Gassimultaneously) | Detecting Range | Resolution | ||
| Carbon Monoxide(CO) | 0-500ppm | 1ppm | ||
| Hydrogen Sulfide(H2S) | 0-100ppm | 1ppm | ||
| Ammonia(NH3) | 0-50/100ppm | 0.1/1ppm | ||
| Ozone(O3) | 0-1/10/100ppm | 0.1/1ppm | ||
| Oxygen(O2) | 0-30%VOL | 1%VOL | ||
| Sulfur Dioxide(SO2) | 0-200/500ppm | 1ppm | ||
| Methane(CH4) | 0-100%VOL | 1%VOL | ||
| Volatile Organic(VOC) | 0-50/100/200ppm | 1ppm | ||
| Nitric Oxide(NO) | 0-250/2000ppm | 1ppm | ||
| Nitrogen Dioxide(NO2) | 0-20/2000ppm | 1ppm | ||
| Hydrogen Chloride(HCL) | 0-50/200ppm | 1ppm | ||
| Carbon Dioxide(CO2) | 0-1/2/5/10%VOL | 0.1/1%VOL | ||
| Nitrogen(N2) | 0-30%VOL | 0.1/1ppm | ||
| Combustible Gas(EX) | 0-100%LEL | 1%VOL | ||
| Argon Gas(Ar) | 0-30%VOL | 1%VOL | ||
| Hydrogen Cyanide(HCN) | 0-50ppm | 1ppm | ||
| Fluorine Gas(F2) | 0-1ppm | 0.1ppm | ||
| For more other gas detecting, please contact us for customization as per your request. | ||||
Color Customization To Create a Unique Appearance
