Multi Gas Detector
| Brand | Safewill |
| Model | ES30A |
| Weight | 182g |
| Certificates | CE, RoHS, ATEX, FCC, SIL |
| Detecting Gas | EX, O2, H2S, CO |
| Measuring range | EX: 0-100%LEL, O2: 0-30%VOL, H2S: 0-100ppm, CO: 0-500ppm |

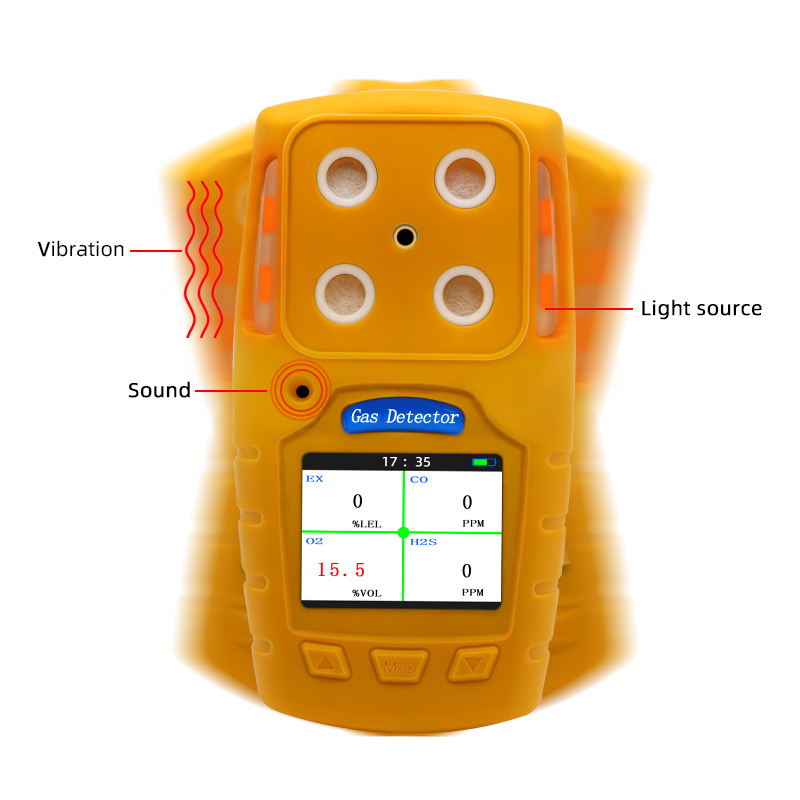

The ES30A portable gas detector produced by our company is an industrial gas leak detection and alarm device with high sensitivity and wide range. Using imported catalytic combustion sensors controlled by embedded microprocessors, combined with large-scale digital integrated circuits and low-power components, the gas concentration signal in the air is converted into an electrical signal, which is visually displayed on a LCD screen. When the measured gas concentration in the environment reaches or exceeds the preset concentration value, the instrument immediately emits a triple alarm of sound, light, and vibration, effectively ensuring the safety of workers' lives and the reliability of production equipment.

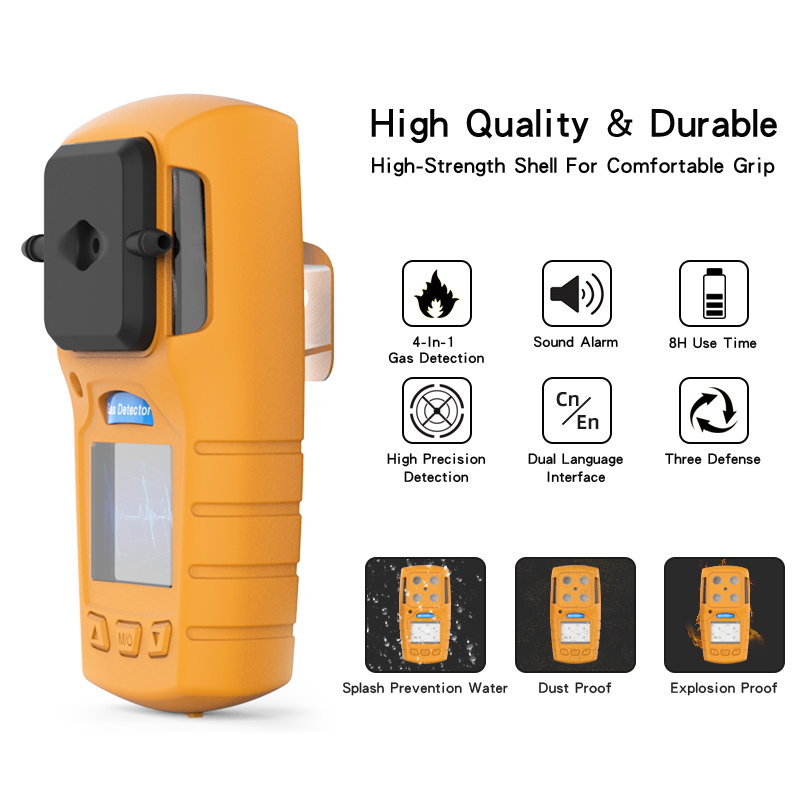

The detector housing is made of high-strength engineering materials and refined dual color materials of composite elastic rubber, which have high strength, good hand feel, and are waterproof, dustproof, and explosion-proof.
Small and lightweight body: This gas detector is designed in a pocket size, with a small and lightweight body, making it more convenient to carry. The body is smaller than a regular phone.
Lithium ion rechargeable battery: 1500mAh, ultra long standby for seven days; Polymer lithium battery, environmentally friendly, lightweight, and large capacity; Good heat dissipation can avoid interference and radiation.
Contact Us for a Quote Today
For more details about our products, pricing, and shipping information, feel free to reach out. We look forward to providing you with the best service possible!
| Product name | Portable multi gas detector | |||
| Measuring gas | O2 | CO | H2S | Combustible |
| Measuring range | 0-25%VOL | 0-500ppm | 0-100ppm | 0-100%LEL |
| Sensor type | Electrochemical | Electrochemical | Electrochemical | Catalytic |
| Measuring type | Diffuse naturally | |||
| Response time | T90<30s | |||
| Display | LCD screen | |||
| Audible | ≥85dB at 1m | |||
| Alarm method | Visual, audible and vibrative signals | |||
| Battery | DC3.7V 1500mAh Lithium battery | |||
| Operating time | ≥8h | |||
| Event log | 100,000 events | |||
| Working temperature | Toxic gases: -20℃～50℃ Combustible: -40℃～70℃ | |||
| Working humidity | <95%RH (no condensation) | |||
| Housing | Rubber enclosure | |||

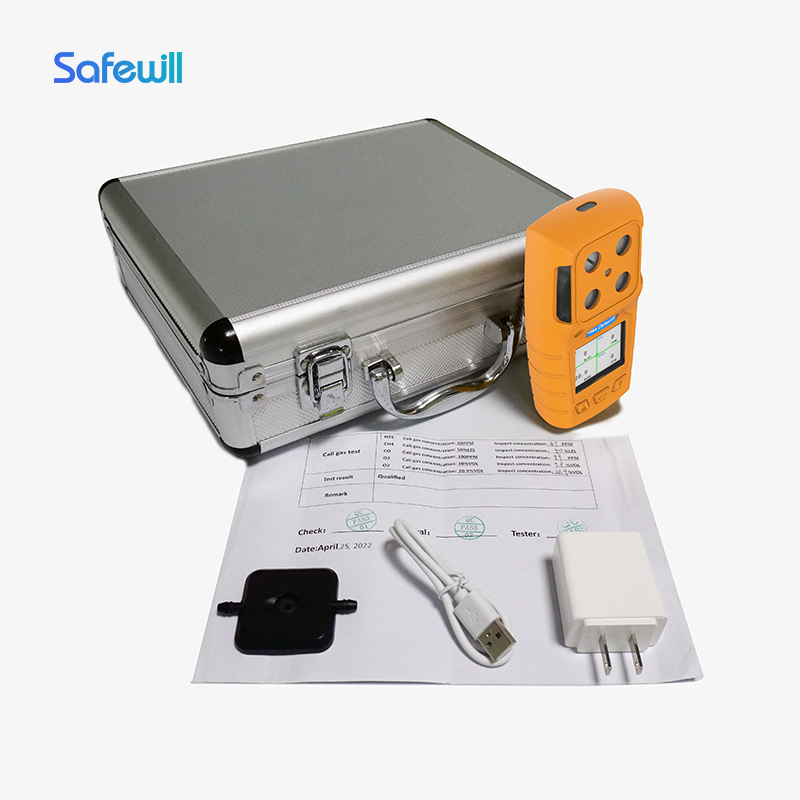

| Standard accessories | Operation manual, calibration cap, charger, screwdriver, USB cable | |||
| Dimension & weight | 124x65x50mm, about 182g | |||
| Ex grade | Ex ia IIC T4 Gb | |||
| Ingress protection | IP65 | |||
Color Customization To Create a Unique Appearance
