Agricultural Monitoring System Wind Speed and Direction Smart Agricultural Meteorological Station Rainfall Precipitation Evapotranspiration Solar Radiation

1. Product Introduction

Shenzhen Safewill, as a professional enterprise engaged in the research and development, production, and sales of micro meteorological instruments, has been committed to promoting the application of micro meteorological instruments and meteorological environment solutions. With a complete production chain, strong technical team, and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic anemometers, five element micro meteorological instruments, six element micro meteorological instruments, and small automatic meteorological stations. These products have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, navigation ships, airports, bridges, tunnels, and other fields. Our customers are spread all over the country and have achieved good social and economic benefits.

Compared with traditional micro meteorological instruments, our products overcome the need for high-precision timers and avoid measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

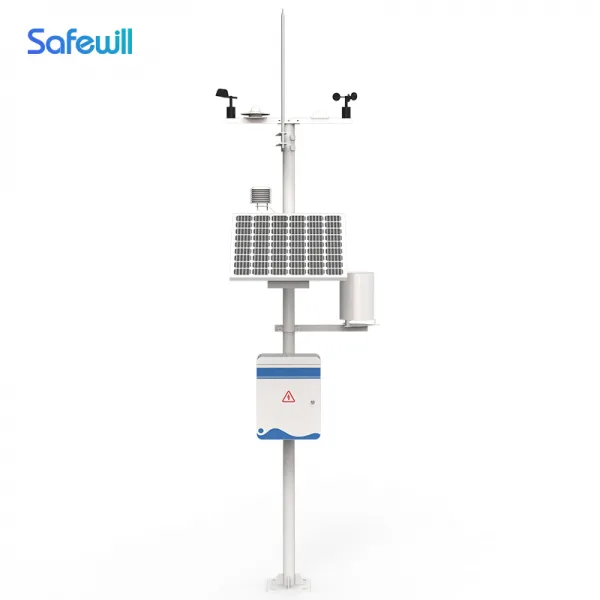

The ES80A twelve element micro meteorological instrument, also known as the atmospheric pollution environmental monitoring instrument, is a highly integrated instrument developed by Shenzhen Safewill company to monitor six pollutant parameters, PM2.5, PM10, CO, SO2, NO2, O3, as well as 12 parameters including air temperature, relative humidity, wind speed, wind direction, atmospheric pressure, and rainfall, in response to the increasingly severe environmental protection situation. The main function is to conduct 24-hour continuous online monitoring of conventional pollution factors and meteorological auxiliary parameters in the air, provide the analyzed data to the environmental protection bureau as a reference for air quality, and assist in environmental decision-making. In addition, optional options include hydrogen sulfide (H2S), volatile organic pollutants (TVOC), ammonia (NH3), solar radiation, noise, etc.

The ES80A air pollution environmental monitoring instrument can be applied to urban grid environmental monitoring and control, smart streetlights, scenic area environmental monitoring, factories or mines, construction sites (dust monitoring), urban roads, highways, public places and other places related to air quality monitoring.

2. Product Features

1. Hidden ultrasonic probe on the top cover to avoid interference from accumulated rain and snow, and to prevent natural wind obstruction

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring relative phase (invention patent, patent number ZL 2021 1 0237536.5) ☆

3. PM2.5、PM10、CO、SO2、NO2、O3、 Temperature, humidity, wind speed, wind direction, atmospheric pressure, and rainfall are all integrated elements

4. Adopting advanced sensing technology, real-time measurement, no startup wind speed ☆

5. Strong anti-interference ability, equipped with watchdog circuit and automatic reset function, ensuring stable operation of the system

6. High integration, no moving parts, zero wear and tear

7. Maintenance free, no need for on-site calibration

8. Using ASA engineering plastics for outdoor applications, the color remains unchanged year-round

9. The standard output signal for product design is RS485 communication interface (MODBUS protocol); Optional 232 USB、 Ethernet interface, supporting real-time data reading ☆

10. Optional wireless transmission module, minimum transmission interval of 1 minute

11. The probe is designed with a snap fit, which solves the problem of inaccurate looseness during transportation and installation

3. Technical parameters

1) Wind speed: 0-70m/s (± 0.1m/s)

2) Wind direction: 0-360 ° (± 1 °);

3) Air temperature:- 40℃～85℃(±0.3℃)

4) Air humidity: 0-100% RH (± 2% RH)

5) Atmospheric pressure: 300hPa to 1100hPa (± 0.02hPa)

6) PM2.5:0-1000ug/m3 (± 15%)

7) PM10: 0-1000ug/m3 (± 15%)

8) Optical rainfall: 0-4mm/min (± 4%);

9) Carbon monoxide: 0-2000ppb

10) Sulfur dioxide: 0-2000ppb

11) Nitrogen dioxide: 0-2000ppb

12) Ozone: 0-2000ppb

13) Production enterprises have ISO quality management system, environmental management system, and occupational health management system certifications

14) Production enterprises have intellectual property management system certification and computer software registration certificate

15) The production enterprise is a 3A level credit enterprise and certified as a national high-tech enterprise
