Weather Station
| Brand | Safewill |
| Model | ES80A-A6 |
| Weight | 20-30Kg |
| Certificates | EPA, ISO14001, ISO9001, ISO45001 |
| Monitored Parameters | Wind Speed, Wind Direction, PM2.5, PM10, O3, NO2, SO2, CO, Temperature, Humidity, Air Pressure, Rainfall |
| Optional Parameters | Noise, Illumination, UV Radiation, Photosynthetically Active Radiation, Sunshine Duration, Evaporation, Soil Temperature/Humidity/PH |

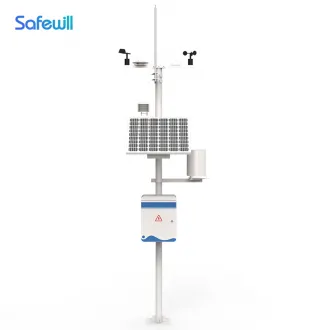

Environmental Meteorological Modular Weather Station, Flexible Environmental Solution Integrating Meteorological and Air Pollution with Solar-Powered

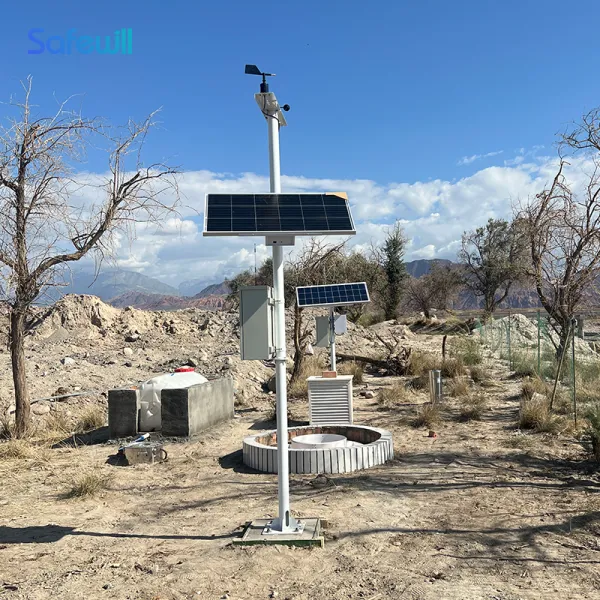

The automatic outdoor environmental weather station from the manufacturer Safewill perfectly integrates the advanced environmental monitoring instruments with the visualized and multi-functional monitoring platform, featuring in the great performance in multi-parameters including dust PM2.5 and PM10, air pollution SO2 NO2 O3 CO and more, wind direction & speed, rainfall, temperature, humidity, air pressure, real-time capability and intellectualization. Solar power module makes it a continuous environmental monitoring system in even remote places without steady power supply, and 4G LTE and DTU module ensures seamless data transmission to a cloud platform for real-time viewing from anywhere. This system is hence perfectly to be applied widely in weather forecasting, agriculture, environmental research, smart city governance, street condition monitoring and industrial compliance monitoring.
Safewill provide professional and customer-centric services:
OEM Support: Help clients's branding development in the local market;
Customization supports: Tailor-made solutions for cleints' diverse needs.
Lead Time: Fast production time within 7 days and in-time delivery;
Sufficient stock: Ready-to-ship products to minimize delays.
Warranty & After-Sales Service: Comprehensive warranty and dedicated technical support.
Safewill Environmental Meteorological Modular Weather Station offers reliable and customizable solutions for real-time environmental and weather status monitoring. Contact us today to discuss your project needs or request a quote!
| Basic Information | ||||
| Product Name | Environmental Meteorological Modular Weather Station | |||
| Data Transmission | 4G LTE, RS485 Modbus | |||
| Preheat Time | 90 Seconds | |||
| Temperature/ Humidity | -20℃~50 ℃/10%RH ~95%RH (No Condensation) | |||
| Power Supply/Consumption | DV12V/AC220V/50Hz/Optional Solar Power Supply | |||
| Data Transmission | DTU module with 4G LTE to check real-time data on mobile/PC | |||
| The Main Material | Cold Rolled Steel Plate | |||
| Installation Method | Outdoor Column Installation | |||
| Protection Class | IP53 | |||
| The Standard Parameters | ||||
| Items | Range | Resolution | Accuracy | |
| PM2.5 | 0-1000μg/m3 | 1ug/m3 | ≤±10%FS | |
| PM10 | 0-2000μg/m3 | 1ug/m3 | ≤±10%FS | |
| O3 | 500ppb | 1ppb | ≤±10%FS | |
| NO2 | 500ppb | 1ppb | ≤±10%FS | |
| SO2 | 500ppb | 1ppb | ≤±10%FS | |
| CO | 50ppm | 0.1ppm | ≤±10%FS | |

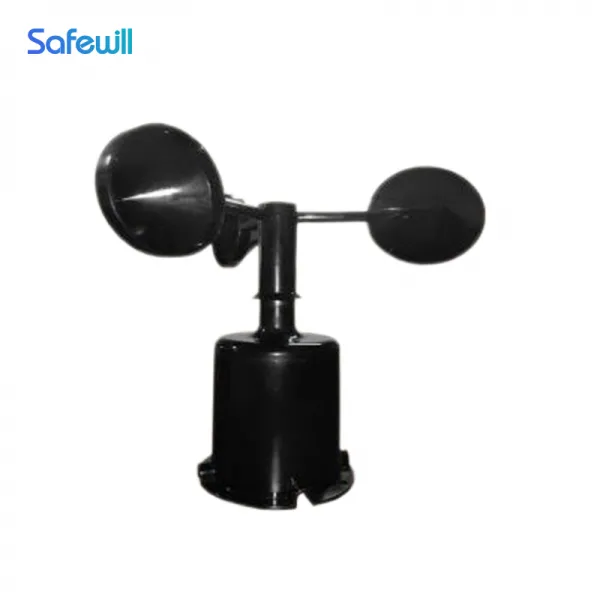

| Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s | |
| Wind Direction | 0-360° | 1° | / | |
| Temperature | -30℃--50℃ | 0.1℃ | ±1℃ | |
| Humidity | 0-95%Rh | 1%Rh | ±5%Rh | |
| Atmospheric Pressure | 600—1100hPa | 1 hPa | / | |

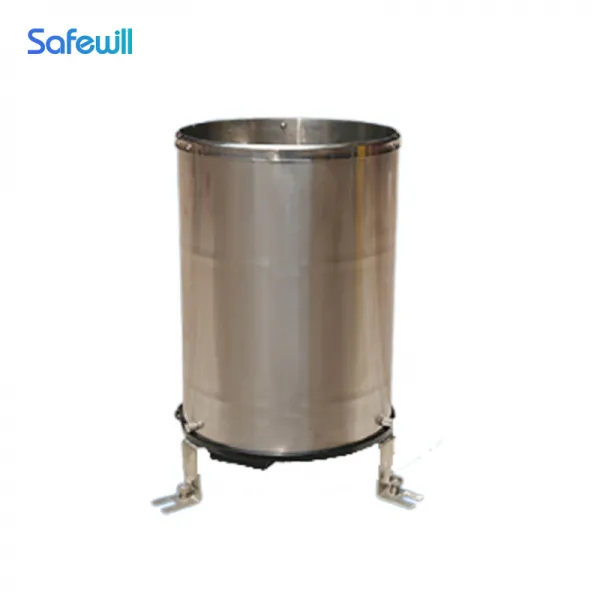

| Rainfall | 0~4mm/min | 0.1mm | ±0.4mm (≤10mm) ±4%(>10mm) | |
| Optional Parameters | ||||
| Items | Range | Resolution | Accuracy | |
| Noise | 30dB(A)~130dB(A) (A-weighted) | / | ±3dB | |
| PM2.5 | 0-1000μg/m3 | 1ug/m3 | ≤±10%FS | |
| PM10 | 0-2000μg/m3 | 1ug/m3 | ≤±10%FS | |
| Photosynthetically Active Radiation | 0-2000W/m² | 1W/m² | ±3% | |
| Sunshine Duration | 0-24h | 0.1h | ||
| Evaporation | 0～1000mm | 0.1mm | ±0.5% | |

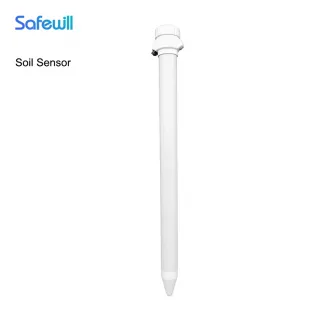

| Soil Temperature | -50～100℃ | 0.1℃ | ≤±10%FS | |
| Soil Humidity | 0～100% | 0.1%RH | ≤±10%FS | |
| Illumination | 0~200,000 Lux | / | ±7% (25℃) | |
| UV Radiation | 0~400mW/㎡ | 1mW/㎡ | ±5% | |
Color Customization To Create a Unique Appearance
